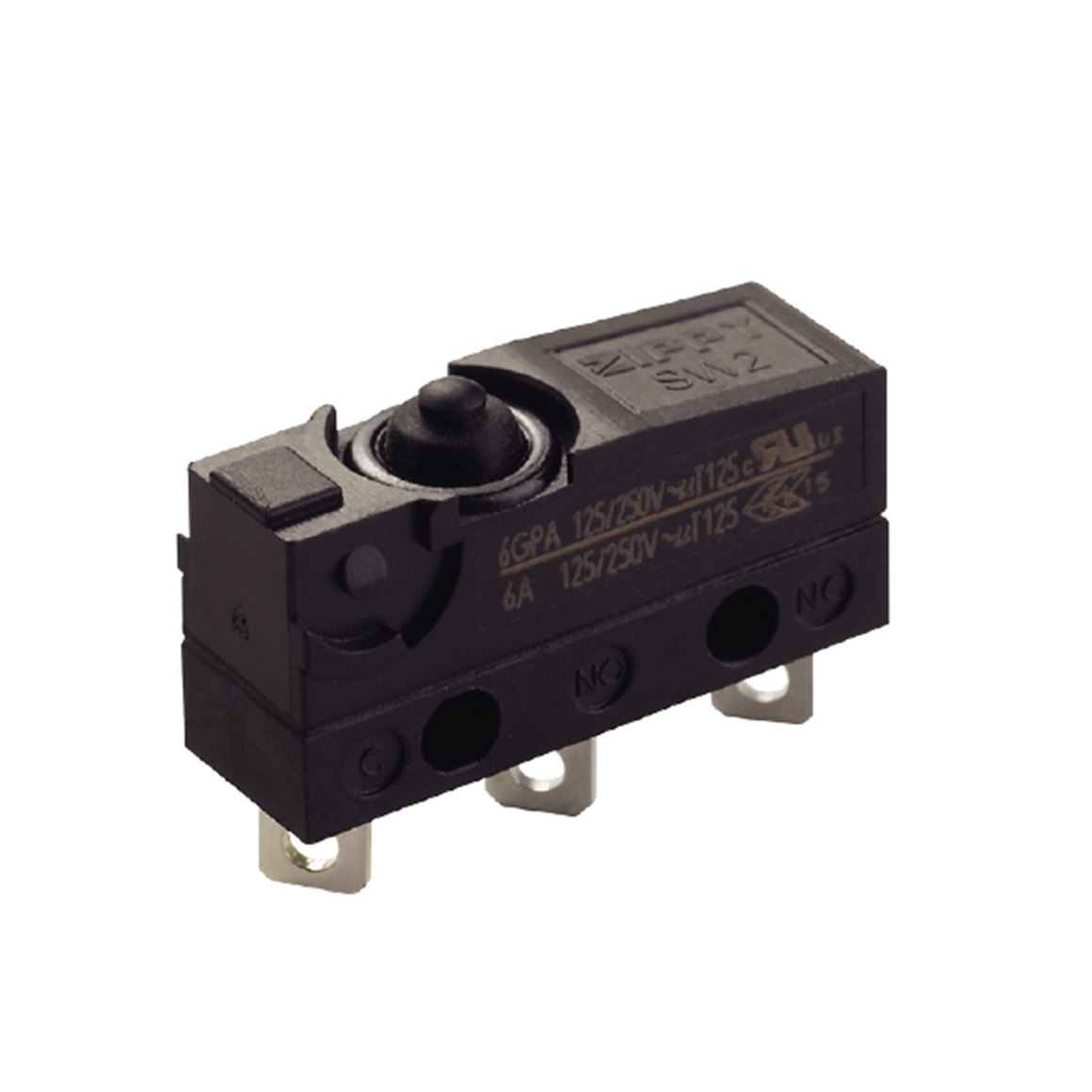

Sealed Water Proof Switches (SW2 series)

SW2 series

Specifications
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   300m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   2,000,000 Operations
Service life(electrical)
   10,000 Operations

Rating
0.1A,3A,6A,10A ; 5A 30VDC
Application
Telephone, Air conditioner, Computer, Humidifier, Alarm,
Time recorder, Mixer & Chopper, Solder gun, Neon phone,
Fax machine, Joystick, Water pump, Gas detector, Pencil sharpener,
Money sorter, Food processor, Electric knife, Toy car, Juice maker,
Electric steak pan.

Dimensions
Unless otherwise specitied, a tolerance of ±0.4mm applies to all dimensions.
