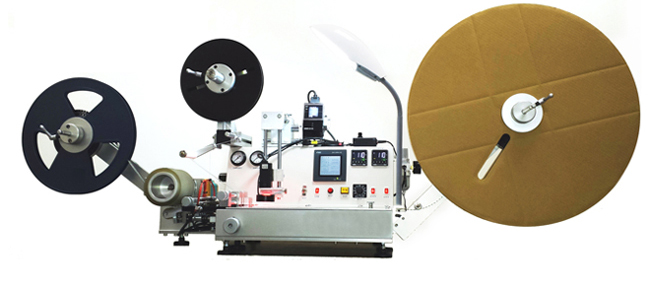

Semi-Automatic Tape and Reel Machine
Semi-Automatic Component Taping Machine/ Tape and Reel Machine Option (Customized): CCD& Feeding Device Model No.: T225
Features:
• Working Platform: Twin screw synchronous drive structure to adjust width of tape track.
• Separate heat sealing blade: Temperature & pressure can be adjusted individually.
• The trimming mechanism adopts positioning module. Adjustment can be done without tools.
• Electrical wiring control & Programming
• Tape driving mechanism: stepping motor + pin wheel
Specification:
Option:
Dimension of working platform can be customized.
With CCD Inspection System ( Keyence /Omron CCD Camera)
• Working Platform: Twin screw synchronous drive structure to adjust width of tape track.
• Separate heat sealing blade: Temperature & pressure can be adjusted individually.
• The trimming mechanism adopts positioning module. Adjustment can be done without tools.
• Electrical wiring control & Programming
• Tape driving mechanism: stepping motor + pin wheel
Specification:
| Packaging Dimension(mm) | L800*W450*H610 |
| Machine Dimension(mm) | L430*W450*H610 |
| Power | 50/60 Hz; single phase |
| Air Pressure (kg／cm2) | 4~6 |
| Speed (meter/hour) | 120 |
| Sealing Modes | 1.Heat-activated adhesive (HAA) 2.Pressure-sensitive adhesive (PSA) a.Intermittent b. Continuous |
| Carrier Tape Width | 8~72mm |
Option:
Dimension of working platform can be customized.
With CCD Inspection System ( Keyence /Omron CCD Camera)
