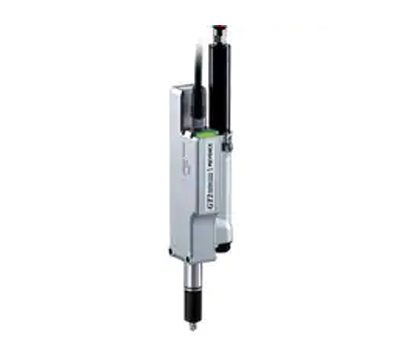

Sensor Head, Air Cylinder Model

Model

GT2-A32

Detection system

Quartz glass scale, CMOS image sensor projection system, Absolute type (without tracking error)

Measuring range

32 mm 1.26"

Resolution

0.5 μm 0.02 Mil

Indicated accuracy

3 µm 0.12 Mil (p-p)^*1

Measuring force

Downward mounting

2.1 N^*2

Side mounting

1.8 N^*2

Upward mounting

1.5 N^*2

Sampling cycle

1 ms

Operation indicator light

2-color LED (red, green)

Environmental resistance

Enclosure rating

IP67^*3

Pressure resistance

1 MPa

Applied pressure range

0.25 to 0.5 MPa

Ambient temperature

0 to +55 °C 32 to 131 °F (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions^*4

Materials

Main body

Main body case: Zinc die-casting; Cylinder part: Aluminium alloy;
Air joint resin part: Polyacetal; Air joint metal part: Brass nickel plating; Indicator: Polyarylate

Dust boot

NBR

Contact

TYPE304, 440C Stainless steel^*5

Sensor head cable

Optional (connect to the M8 connector)

Weight

Approx. 340 g (excluding cable)
