Sensor

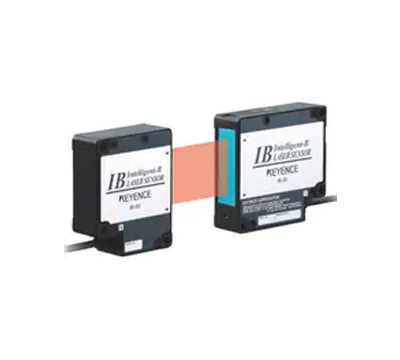

Sensor Head Keyence IB-30
*2 Value when measuring the target (white diffuse object) at the middle of the transmitter and receiver position, and at the center of the measurement range.
*3 When distance between transmitter and receiver is set to 300 mm 11.81", and light is half-shielded at a position 150 mm 5.91" from receiver. Deflection width (±2σ) when sampled for 30 seconds with an average number of times set to 64 times.
*4 When distance between transmitter and receiver is set to 100 mm 3.94" and full light is received.
|
Model |
IB-30 |
|||
|
Light source |
Wavelength |
660 nm (Visible light semiconductor laser) |
||
|
Laser Class |
Class 1 Laser Product (IEC 60825-1, FDA (CDRH) Part 1040.10*1) |
|||
|
Installation distance |
0 to 300 mm 11.81" |
|||
|
Measurement range |
30 mm 1.18" |
|||
|
Sampling cycle |
12,500 times/sec. (80 µs) |
|||
|
Minimum detection target |
ø0.2 mm ø0.01"*2 |
|||
|
Repeatability |
10 µm 0.39 Mil*3 |
|||
|
Temperature characteristics |
±0.1 % of F.S./°C (±30 µm 1.18 Mil)*4 |
|||
|
Operating indicators |
Laser emission warning indicator: green LED |
|||
|
Environmental resistance |
Ambient light |
Incandescent lamp: 10,000 lux, Solar light: 10,000 lux |
||
|
Ambient temperature |
0 to +50 °C 32 to 122 °F (No freezing) |
|||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis |
|||
|
Material |
Case |
Galvanized die cast |
||
|
Lens cover |
Glass |
|||
|
Cable |
PVC (2 m 6.6') |
|||
|
Weight |
Approx. 510 g |
|||
|
*1 The classification for FDA (CDRH) is implemented based on IEC60825-1 in accordance with the requirements of Laser Notice No. 50. |
||||
