Sensor
Specifications
|
Model |

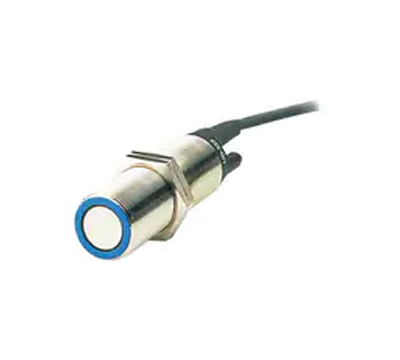

UD-320 |
|||
|
Type |
Long-range type sensor head |
|||
|
Amplifier unit |
UD-300 |
|||
|
Measurement range |
200 to 1300 mm |
|||
|
Display resolution |
1mm |
|||
|
Indication system (Display) |
±1% of F.S.*1 |
|||
|
Analogue current output |
Output current |
4 to 20mA |
||
|
Applicable load |
0 to 500 Ω |
|||
|
Resolution |
0.08mA*2 |
|||
|
Temperature characteristics |
0.05% of F.S./°C |
|||
|
output |
Controloutput |
Relay output: 1c × 2, 220 VAC, 3 A (resistive load) |
||
|
Alarm output |
Relay output: 1a, 220 VAC, 3 A (resistive load) |
|||
|
Hysteresis (of detecting distance) |
1 to 255 mm variable |
|||
|
Response time |
56 ms (at 10 Hz) |
|||
|
Minimum detectable object |
20 x 20 mm*3 |
|||
|
Rating |
Power voltage |
24 VDC, Ripple (P-P) 10 % or less*4 |
||
|
Current consumption |
250 mA or less |
|||
|
Environmental resistance |
Enclosure rating |
IP65 |
||
|
Ambient temperature |
-25 to +70 °C |
|||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Weight |
Approx. 190 g (not including the cord) |
|||
|
*1 The Analogue output linearity is ±2.5% of F.S. (The F.S. is 300 mm for the UD-310, 1300 mm for the UD-320, 6000 mm for the UD-360, and 3000 mm for the UD-330.) |
||||
