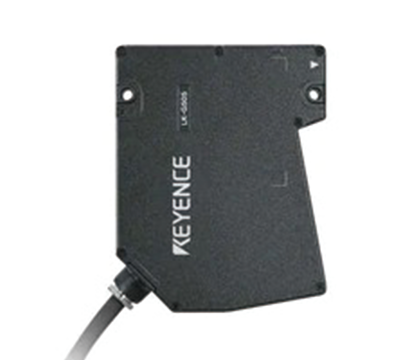

Sensor Head: Ultra Long Distance, Wide beam

Model

LK-G507

Reference distance

Diffused reflection: 500 mm 19.69", Specular reflection: 497.5 mm 19.59"

Measuring range

Diffused reflection: -250 to +500 mm -9.84" to 19.69", Specular reflection: -249 to +498 mm -9.80" to 19.61"^*1*2

Light source

Type

Red semiconductor laser

Wavelength

655 nm (visible light)

Laser Class

Class II (FDA CDRH 21CFR PART1040.10)

Output

0.95 mW

Spot diameter (at reference distance)

Approx. 300 x 9,500 µm 0.0118" x 0.3740"

Linearity

±0.05 % of F.S. (±250 µm ±0.0098")^*3*4 -250 to +250 mm -9.84" to +9.84"
High-accuracy range: ±0.02 % of F.S. (±100 µm ±0.0039") -250 to -50 mm -9.84" to -1.97"
Long range: ±0.1 % of F.S. (±500 µm ±0.0197") -250 to +500 mm -9.84" to +19.69" (F.S. = ±250 mm ±9.84")^*5

Repeatability

2 µm 0.000079"^*6

Sampling frequency

20 / 50 / 100 / 200 / 500 / 1,000 µs (Selectable from 6 levels)

LED display

Near the center of the measurement: Green lights
Within the measurement area: Orange lights
Outside the measurement area: Orange flashing

Temperature characteristics

0.01 % of F.S./°C (F.S.= ±250 mm ±9.84")

Environmental resistance

Enclosure rating

IP67 (IEC60529)

Ambient light

Incandescent lamp or Fluorescent lamp: 5,000 lux max.

Ambient temperature

0 to +50 °C 32 to 122 °F

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

Material

Aluminum die-cast

Weight

Approx. 380 g (including the cable)
