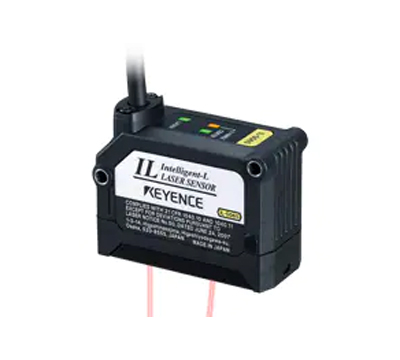

Sensor Heads Keyence IL-S065
*2 Value when measuring the KEYENCE standard target (white diffuse object).
*3 F.S. of each model is as follows. IL-S025: ±5 mm IL-S065: ±10 mm
*4 Value when measuring the KEYENCE standard target (white diffuse object) at the reference distance, sampling rate: 1 ms, and average number of times: 128.
*5 Value when the sampling rate is set to 2 ms or 5 ms.
|
Model |
IL-S065 |
|||
|
Reference distance |
65 mm |
|||
|
Measurement range |
55 to 75 mm |
|||
|
Light source |
Type |
Red semiconductor laser, wavelength: 655 nm (visible light) |
||
|
Laser class |
Class 2 (FDA (CDRH) Part1040.10)*1, Class 2 (IEC 60825-1) |
|||
|
Output |
560 µW |
|||
|
Spot diameter (at standard distance) |
Approx. 55 x 1,700 µm |
|||
|
Linearity |
±0.05% of F.S. (55 to 65 mm)*2*3 |
|||
|
Repeatability |
2 µm*4 |
|||
|
Sampling rate |
0.33/1/2/5 ms (4 levels available) |
|||
|
Operation status indicators |
Laser emission warning indicator: Green LED, Analogue range indicator: Orange LED, Reference distance indicator: Red/Green LED |
|||
|
Temperature characteristics |
0.02% of F.S./°C*3 |
|||
|
Environmental resistance |
Enclosure rating |
IP67 |
||
|
Pollution degree |
3 |
|||
|
Ambient light |
Incandescent lamp: 10,000 lux*5 |
|||
|
Ambient temperature |
-10 to +50 °C (No condensation or freezing) |
|||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions |
|||
|
Material |
Housing material: PBT, Metal parts: SUS304, Packing: NBR, Lens cover: Glass, Cable: PVC |
|||
|
Weight |
Approx. 75 g |
|||
|
*1 The laser classification for FDA (CDRH) is implemented based on IEC 60825-1 in accordance with the requirements of Laser Notice No.50. |
||||
