Sensor

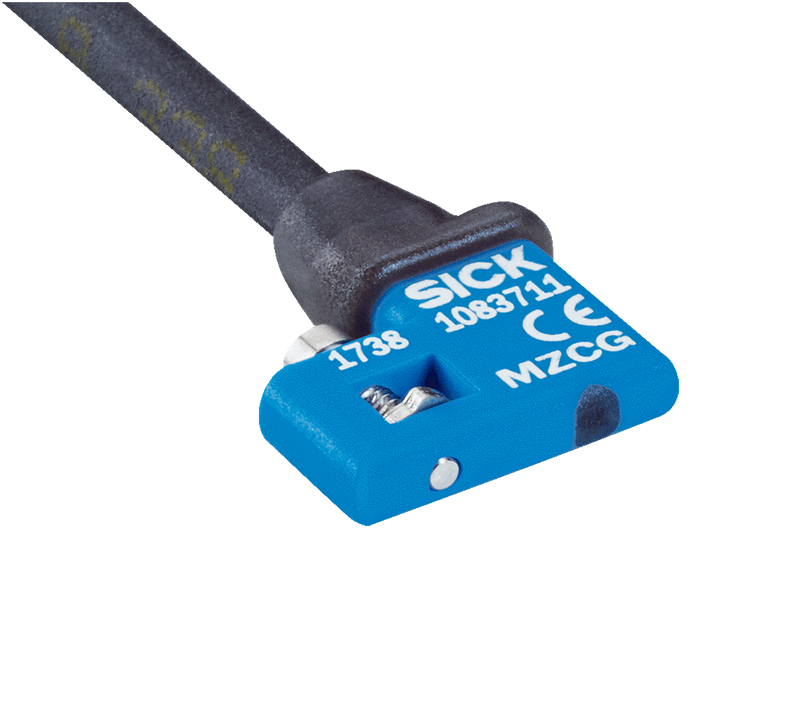

Sensors for C-slot cylindersMZCG
Type:MZCG-1Z7NS-KUB
Part No.:1083717
Features
| Cylinder type |
C-slot |
| Cylinder types with adapter |
SMC rail CDQ2
SMC rail ECDQ2
|
| Housing length |
12.2 mm |
| Switching output |
NPN |
| Switching frequency |
1,000 Hz |
| Output function |
NO |
| Electrical wiring |
DC 3-wire |
| Enclosure rating |
IP68 |
Mechanics/electronics
| Supply voltage |
10 V DC ... 30 V DC |
| Power consumption |
7 mA, without load |
| Voltage drop |
≤ 2.5 V |
| Continuous current Ia |
≤ 100 mA |
| Protection class |
III |
| Response sensitivity, typ. |
1.7 mT |
| Overrun distance, typ. |
2 mm |
| Hysteresis, typ. |
≤ 0.4 mT |
| Reproducibility |
≤ 0.1 mT 1) |
| Reverse polarity protection |
✔ |
| Short-circuit protection |
✔ |
| Power-up pulse protection |
✔ |
| Ambient operating temperature |
–30 °C ... +80 °C |
| Shock and vibration resistance |
30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| EMC |
According to EN 60947-5-2 |
| Connection type |
Cable, 3-wire, drag chain use, 5 m |
| Connection type Detail |
|
| Conductor cross-section |
0.14 mm² |
| Cable diameter |
Ø 2.9 mm |
| Bending radius |
With fixed installation > 3 x cable diameter |
| |
For flexible use > 5 x cable diameter |
| Torsion force |
± 270° / 10 cm |
| Torsion cycles |
2,000,000 |
| Drag chain cycles |
> 2,000,000 |
| Drag chain parameters |
Traversing speed max. 3.3 m/s at 5 m horizontal traversing length |
| |
Acceleration max. 5 m/s² |
| Cable outlet |
Radial |
|
| Material |
|
| Housing |
Plastic |
| Cable |
PUR |
|
| UL File No. |
NRKH.E181493 & NRKH7.E181493 |
Safety-related parameters
| MTTFD |
1,790 years |
| DCavg |
0 % |
Classifications
| ECl@ss 5.0 |
27270104 |
| ECl@ss 5.1.4 |
27270104 |
| ECl@ss 6.0 |
27270104 |
| ECl@ss 6.2 |
27270104 |
| ECl@ss 7.0 |
27270104 |
| ECl@ss 8.0 |
27270104 |
| ECl@ss 8.1 |
27270104 |
| ECl@ss 9.0 |
27270104 |
| ECl@ss 10.0 |
27270104 |
| ECl@ss 11.0 |
27270104 |
| ECl@ss 12.0 |
27274301 |
| ETIM 5.0 |
EC002544 |
| ETIM 6.0 |
EC002544 |
| ETIM 7.0 |
EC002544 |
| ETIM 8.0 |
EC002544 |
| UNSPSC 16.0901 |
39122230 |
