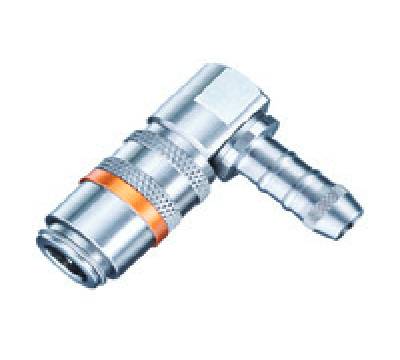

Shut-off coupling, Stainless Steel, with valve, 90° angled
p
l2
l1
d6
d4
d2
d1
w1
Mat
Product
25
26
48
17
9
6
9
90
VA
Z80HT/9x90/VA
25
30,5
53,5
22,5
13
9
13
90
VA
Z80HT/13x90/VA
The new HASCO cooling range in stainless steel is employed in cleanrooms or medical technology applications for
the temperature control of injection moulds in reliable processes, using hot/cold water or oil. The high-quality
1.4305 material of the HASCO coupling system guarantees reliable and durable temperature control applications.
The special FKM materials of the O-rings are eminently suitable for high temperature applications. The low compression
set allows optimum and reliable deployment. Production losses due to leaks are considerably reduced.
Ideal for medical and clean-room technology
Seals in special FKM
Standard system: ≤150°C (water), ≤200°C (oil)
HT-System: ≤180°C (water), ≤220°C (oil)
Low compression set
Thread tightness even with large temperature differences
Choice between open flow, or shut-off valves on one or both sides
