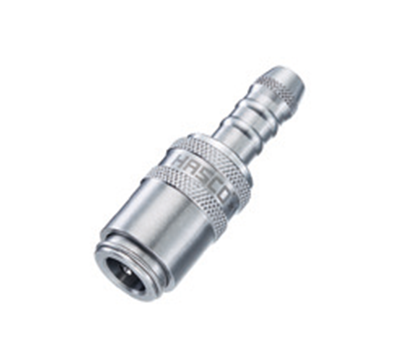

Shut-off coupling, Stainless Steel, with valve
- Hasco Z80/d1/Mat
- 1.4305
- max. 25 bar
Shut-off coupling, Stainless Steel, with valve
The HASCO cooling range in stainless steel is employed in cleanrooms or medical technology applications for the temperature control of njection moulds in reliable processes, using hot/cold water or oil.The high-quality 1.4305 material of the HASCO coupling system guarantees reliable and durable temperature control applications.The special FKM materials of the O-rings are eminently suitable for high temperature applications. The low compression set allows optimum and reliable deployment. Production losses due to leaks are considerably reduced.

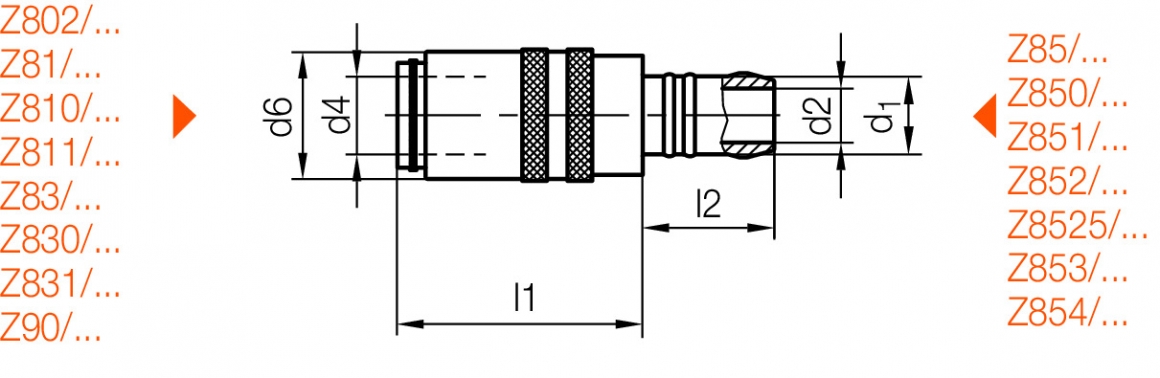

| p | l2 | l1 | d6 | d4 | d2 | d1 | Mat | Product |
|---|---|---|---|---|---|---|---|---|
| 25 | 22,5 | 30 | 17 | 9 | 6 | 9 | VA |
Z80/9/VA
|
| 25 | 25 | 36,5 | 22,5 | 13 | 9 | 13 | VA |
Z80/13/VA
|
The HASCO cooling range in stainless steel is employed in cleanrooms or medical technology applications for the temperature control of njection moulds in reliable processes, using hot/cold water or oil.The high-quality 1.4305 material of the HASCO coupling system guarantees reliable and durable temperature control applications.The special FKM materials of the O-rings are eminently suitable for high temperature applications. The low compression set allows optimum and reliable deployment. Production losses due to leaks are considerably reduced.
- Ideal for medical and clean-room technology
- Seals in special FKM
- Standard system: ≤150°C (water), ≤200°C (oil)
- HT-System: ≤180°C (water), ≤220°C (oil)
- Low compression set
- Thread tightness even with large temperature differences
- Choice between open flow, or shut-off valves on one or both sides
- Quality material 1.4305
- Damage to functional surfaces is avoided
- Easy one-hand operation
- Compatible with the HASCO brass cooling range
