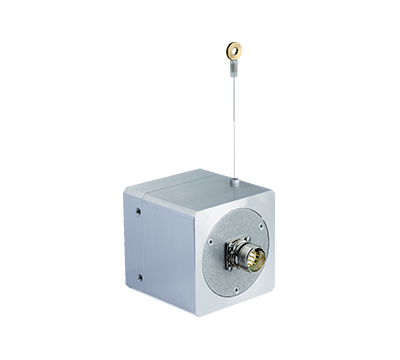

Sensor
Performance - BKS
Interfaces - BKS
Electrical data - BKS
Mechanical data - BKS
Ambient data - BKS
Classifications
| Measurement range | 0 m ... 2 m |
| Encoder | Absolute encoders |
| Number of steps per revolution | 3,060 |
| Repeatability | ≤ 0.15 mm |
| Linearity | ≤ ± 0.7 mm |
Interfaces - BKS
| Communication interface | SSI |
Electrical data - BKS
| Connection type | Male connector, M23, 12-pin, radial |
| Supply voltage | 12 V ... 30 V |
| MTTFd: mean time to dangerous failure | 150 years (EN ISO 13849) 1) |
- 1) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.
Mechanical data - BKS
| Weight | 1.5 kg |
| Measuring wire material | Highly flexible stranded steel (PA 12 sheathed) |
| Housing material, wire draw mechanism | Aluminum |
| Spring return force | 5 N ... 6 N 1) |
| Length of wire pulled out per revolution | 153 mm |
| Life of wire draw mechanism | Typ. 800,000 cycles 2) 3) |
| Wire acceleration | ≤ 20 m/s² |
| Operating speed | 3.5 m/s |
- 1) These values were measred at an ambient temperature of 25 °C. There may be variations at other temperatures.
- 2) A cycle consists of the wire being pulled out and drawn in.
- 3) The service life depends on the type of load. This is influenced by environmental conditions, the installation location, the measuring range in use, the traversing speed, and acceleration.
Ambient data - BKS
| EMC | According to EN 61000-6-2 and EN 61000-6-3 |
| Enclosure rating | IP52, Note required mounting position (IEC 60529) |
| Operating temperature range | –10 °C ... +70 °C |
Classifications
| ECl@ss 5.0 | 27270590 |
| ECl@ss 5.1.4 | 27270590 |
| ECl@ss 6.0 | 27270590 |
| ECl@ss 6.2 | 27270590 |
| ECl@ss 7.0 | 27270590 |
| ECl@ss 8.0 | 27270590 |
| ECl@ss 8.1 | 27270590 |
| ECl@ss 9.0 | 27270590 |
| ECl@ss 10.0 | 27270613 |
| ECl@ss 11.0 | 27270503 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
