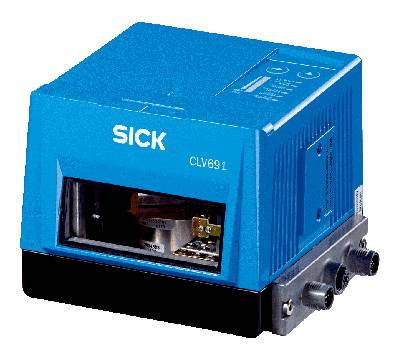

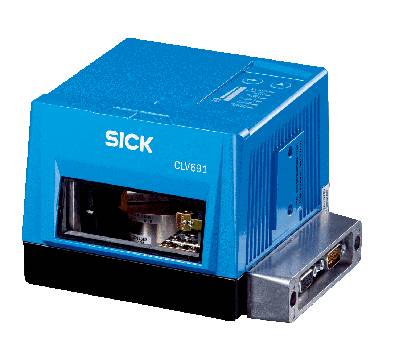

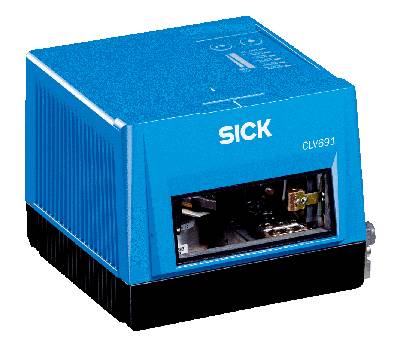

Fixed mount barcode scanners SICK CLV69x / CLV691-0/1

Type:CLV691-0000
Part No.:1056604

add to cart Inquiry Now

Features

Version	Low Density
Connection type	Depending on the cloning plug used
Reading field	Front
Scanning method	Line scanning
Sensor type	Line scanner
Optical focus	Auto focus (alternative: dynamic focus control)
No. of distance configurations	≤ 8
Focus adjustment time	≤ 20 ms
Focus trigger source	Data interface / Digital inputs
Light source / Light spot	Laser, Visible, Red, 660 nm
Laser class	2 (IEC 60825-1:2014, EN 60825-1:2014)
Aperture angle	≤ 60°
Scanning frequency	400 Hz ... 1,200 Hz
Code resolution	0.35 mm ... 1.2 mm
Reading distance	500 mm ... 2,200 mm ¹⁾

Mechanics/electronics

Connection type	Depending on the cloning plug used
Supply voltage	18 V DC ... 30 V DC
Power consumption	15 W
Housing	Aluminum die cast
Housing color	Light blue (RAL 5012)
Front screen	Glass
Enclosure rating	IP65 (EN 60529/A1 (2002-02))
Weight	+ 1,500 g
Dimensions (L x W x H)	117 mm x 117 mm x 94 mm
MTBF	100,000 h
MTTF	40,000 h (Laser diode) ¹⁾

Performance

Readable code structures	1D codes
Bar code types	Interleaved 2 of 5, all current code types, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
Print ratio	2:1 ... 3:1
No. of codes per scan	1 ... 20 (Standard decoder) 1 ... 6 (SMART decoder)
No. of codes per reading interval	1 ... 50 (auto-discriminating)
No. of characters per reading interval	5,000
No. of multiple readings	1 ... 100

Interfaces

Ethernet	✔ , TCP/IP
Remark	Only with cloning plug I/O, CAN IN/OUT or CAN Redundant
Function	Host, AUX
Data transmission rate	10/100 MBit/s

PROFINET	✔
Type of fieldbus integration	Optional over external fieldbus module CDF600-2
Remark	Only with cloning plug I/O, CAN IN/OUT or CAN Redundant
Function	PROFINET Single Port, PROFINET Dual Port

EtherNet/IP™	✔
Remark	Only with cloning plug I/O, CAN IN/OUT or CAN Redundant
Data transmission rate	10/100 MBit/s

Serial	✔ , RS-232, RS-422, RS-485
Remark	Only with cloning plug D-Sub and Ethernet
Function	Host, AUX (only RS-232)
Data transmission rate	0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)

CAN	✔
Function	SICK CAN sensor network CSN (master/slave, multiplexer/server)
Data transmission rate	20 kbit/s ... 1 Mbit/s

PROFIBUS DP	✔
Type of fieldbus integration	Optional over external fieldbus module CDF600-2

DeviceNet™	✔
Type of fieldbus integration	Optional, over external connection module CDM + CMF

Digital inputs

6 (“Sensor 1” ... “Sensor 6”)

Digital outputs

4 (“Result 1” ... “Result 4”)

Reading pulse

Digital inputs, serial interface, auto pulse, CAN

Optical indicators

6 LEDs (Ready)

Result

Laser

Data

CAN

LNK TX

Bar graph for displaying the reading rate percentage (10 LEDs)

Control elements

2 buttons

Parameter storage

Integrated in cloning plug

Configuration software

SOPAS ET

Ambient data

Electromagnetic compatibility (EMC)	EN 61000-6-4 (2007-01) + A1 (2011) EN 61000-6-2:2005-08
Vibration resistance	EN 60068-2-6:2008-02
Shock resistance	EN 60068-2-27:2009-05
Ambient operating temperature	0 °C ... +40 °C
Storage temperature	–20 °C ... +70 °C
Permissible relative humidity	90 %, Non-condensing
Ambient light immunity	2,000 lx, on barcode
Bar code print contrast (PCS)	≥ 60 %
