Sensor

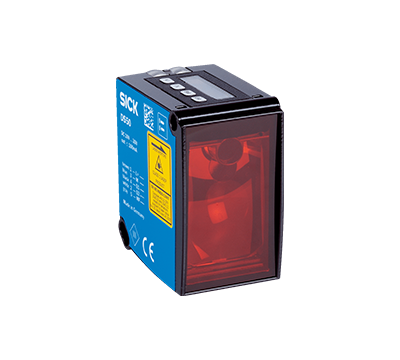

Mid range distance sensors SICK Dx50 / DL50 Hi
Type:DL50-P2228
Part No.:1058986
Part No.:1058986
Mechanics/electronics
Performance
Interfaces
Ambient data
Classifications
| Supply voltage Vs | DC 10 V ... 30 V 1) |
| Ripple | ≤ 5 Vpp 2) |
| Power consumption | ≤ 2.1 W 3) |
| Initialization time | ≤ 250 ms |
| Warm-up time | ≤ 15 min |
| Housing material | Metal (zinc diecast) |
| Window material | Plastic (PMMA) |
| Connection type | Male connector, M12, 8-pin |
| Indication | LC display, 2 x LED |
| Weight | 200 g |
| Dimensions (W x H x D) | 36.1 mm x 62.7 mm x 57.7 mm |
| Enclosure rating | IP65 |
| Protection class | III |
- 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
- 2) May not fall short of or exceed VS tolerances.
- 3) Without load.
Performance
| Measuring range | 200 mm ... 50,000 mm, on “diamond grade” reflective tape 1) |
| Target | Reflector |
| Resolution | 0.1 mm |
| Repeatability | ≥ 0.25 mm 2) 3) 4) |
| Accuracy | ± 3 mm 5) |
| Response time | 10 ms ... 160 ms, 10 ms / 40 ms / 160 ms 3) 6) |
| Output time | 2.5 ms 7) |
| Light source | Laser, red visible red light |
| Laser class | 1 (IEC 60825-1:2014, EN 60825-1:2014) 8) |
| Typ. light spot size (distance) | 15 mm x 15 mm (10 m) |
| Additional function | Set moving average fast/medium/slow, switching mode: distance to object (DtO), teach-in, scaling and inversion of digital output, set hysteresis, Multifunctional input and output: Laser off, external teach, digital output 2, deactivated, Adjustable resolution of the SSI distance output: 0.0625 mm / 0.1 mm / 0.125 mm / 1 mm, Unique measurement value, crosstalk safety, switch-off display, reset to factory default, lock user interface |
| Average laser service life (at 25 °C) | 100,000 h |
- 1) On “diamond grade” reflective tape.
- 2) Equivalent to 1 σ.
- 3) Dependent on the averaging setting: fast/medium/slow.
- 4) Typical value.
- 5) 200 mm ... 4,000 mm: ≤ ± 5 mm.
- 6) Lateral entry of the object into the measuring range.
- 7) Continuous change of distance in measuring range.
- 8) Wavelength: 658 nm; max. output: 80 mW; pulse duration: 2.5 ns; duty cycle: 1/240.
Interfaces
|
|||||||||||
|
|||||||||||
| Multifunctional input (MF) | − / 1 x 3) 4) 5) | ||||||||||
| Hysteresis | 1 mm ... 1,000 mm | ||||||||||
- 1) Output Q short-circuit protected.
- 2) PNP: HIGH = VS - (< 2.5 V) / LOW = 0 V.
- 3) Dependent on the set function MF: digital output 2 / laser off, external teach.
- 4) Response time ≤ 60 ms.
- 5) PNP: HIGH = VS / LOW = ≤ 2.5 V.
Ambient data
| Ambient temperature, operation |
–30 °C ... +65 °C –30 °C ... +80 °C, operation with 2 cooling plates –30 °C ... +140 °C, operation with 2 cooling plates and protection filter |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Max. rel. humidity (not condensing) | ≤ 95 % |
| Typ. Ambient light immunity | 40,000 lx |
| Vibration resistance | EN 60068-2-6, EN 60068-2-64 |
| Shock resistance | EN 60068-2-27 |
Classifications
| ECl@ss 5.0 | 27270801 |
| ECl@ss 5.1.4 | 27270801 |
| ECl@ss 6.0 | 27270801 |
| ECl@ss 6.2 | 27270801 |
| ECl@ss 7.0 | 27270801 |
| ECl@ss 8.0 | 27270801 |
| ECl@ss 8.1 | 27270801 |
| ECl@ss 9.0 | 27270801 |
| ECl@ss 10.0 | 27270801 |
| ECl@ss 11.0 | 27270801 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
