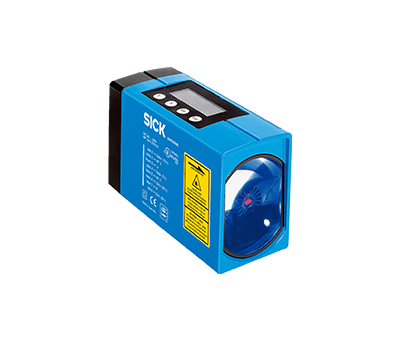

    Long range distance sensors SICK DME4000

    Type:DME4000-114
    Part No.:1029800
    add to cart Inquiry Now
    Mechanics/electronics
    Supply voltage Vs DC 18 V ... 30 V, limit values
    Ripple < 5 Vpp 1)
    Initialization time 1.5 s 2)
    Housing material Metal (zinc diecast)
    Window material Glass
    Connection type Male connector, 1 x M12, 4-pin, 1 x M16, 8-pin
    Indication Display
    Weight Approx. 1,650 g
    Current consumption At 24 V DC < 250 mA
    Dimensions (W x H x D) 61 mm x 85 mm x 166 mm
    Enclosure rating IP65
    Protection class II 3)
    • 1) May not fall short of or exceed VS tolerances.
    • 2) After loss of reflector < 1 s at max. speed Vmax < 1 m/s.
    • 3) Reference voltage DC 32 V.

    Performance
    Measuring range 0.15 m ... 50 m, on “diamond grade” reflective tape
    Target Reflector
    Resolution 0.05 mm ... 5 mm
    Repeatability ≤ 1 mm 1) 2)
    Accuracy ± 3 mm
    Response time 6 ms
    Output time 2 ms
    Light source Laser, red 3)
    visible red light
    Laser class 2, complies with 21 CFR 1040.10 and 1040.11 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
    Typ. light spot size (distance)

    130 mm (at 70 m)

    270 mm (at 150 m)

    360 mm (at 220 m)
    Max. movement speed 10 m/s
    • 1) On “diamond grade” reflective tape.
    • 2) Statistical error 1 σ, environmental conditions constant, min. warm-up time 10 min.
    • 3) Average service life of 50,000 h at TA = +25 °C.

    Interfaces
    DeviceNet™ ✔
    Digital output
    Number 2
    Type Push-pull: PNP/NPN
    Maximum output current IA ≤ 100 mA 1) 2)
    Multifunctional input (MF) 1 x MF 3) 4)
    • 1) Max. 100 nF/20 mH.
    • 2) HIGH = > VS - 3 V / LOW = < 2 V.
    • 3) HIGH = > 12 V / LOW = < 3 V.
    • 4) Not reverse-polarity protected.

    Ambient data
    Electromagnetic compatibility (EMC) EN 61000-6-2, EN 55011: Class B
    Ambient temperature, operation

    –10 °C ... +55 °C

    –10 °C ... +75 °C, operation with cooling case
    Ambient temperature, storage –25 °C ... +75 °C
    Effect of air pressure 0.3 ppm/hPa
    Effect of air temperature 1 ppm/K
    Temperature drift Typ. 0.1 mm/K
    Typ. Ambient light immunity ≤ 40,000 lx
    Mechanical load

    Shock: (EN 600 68-2-27 / –2-29)

    Sine: (EN 600 68-2-6)

    Noise: (EN 600 68-2-64)

    Classifications
    ECl@ss 5.0 27270801
    ECl@ss 5.1.4 27270801
    ECl@ss 6.0 27270801
    ECl@ss 6.2 27270801
    ECl@ss 7.0 27270801
    ECl@ss 8.0 27270801
    ECl@ss 8.1 27270801
    ECl@ss 9.0 27270801
    ECl@ss 10.0 27270801
    ECl@ss 11.0 27270801
    ETIM 5.0 EC001825
    ETIM 6.0 EC001825
    ETIM 7.0 EC001825
    ETIM 8.0 EC001825
    UNSPSC 16.0901 41111613
