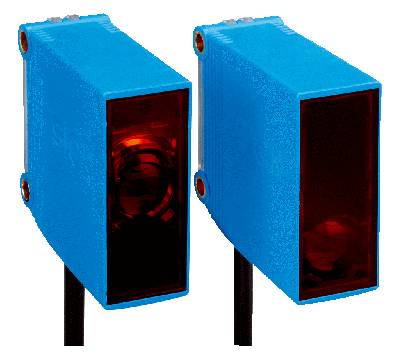

Sensor
Features
Mechanics/electronics
Classifications
| Device type | Photoelectric sensors |
| Sensor/ detection principle | Through-beam photoelectric sensor |
| Dimensions (W x H x D) | 20 mm x 50 mm x 51.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 m ... 40 m |
| Sensing range | 0 m ... 35 m |
| Type of light | Visible red light |
| Light source | PinPoint LED 1) |
| Light spot size (distance) | Ø 180 mm (15 m) |
| Wave length | 625 nm |
| Adjustment | None |
- 1) Average service life: 100,000 h at TU = +25 °C.
Mechanics/electronics
| Supply voltage | 24 V AC/DC ... 240 V AC/DC 1) |
| Ripple | < 5 Vpp 2) |
| Power consumption, sender | ≤ 2 VA |
| Power consumption, receiver | ≤ 2.5 VA |
| Switching output | Relay, SPDT, electrically isolated 3) |
| Switching load max. (current/voltage) |
0.11 A (250 V DC) 3 A (30 V DC) 3 A (250 V AC) |
| Response time | ≤ 10 ms |
| Switching frequency | 20 Hz 4) |
| Connection type | Cable, 5-wire, 2 m 5) |
| Cable material | PVC |
| Conductor cross-section | 0.25 mm² |
| Circuit protection | C 6) |
| Protection class | II 7) |
| Weight | 230 g |
| Interference emission | EN 61000-6-3 (2011-09) 8) |
| Housing material | Plastic, ABS/PMMA |
| Enclosure rating | IP67 |
| Relay switching cycles min. | 100.000 cycles (3 A) |
| Items supplied | Mounting bracket BEF-G10UC01 (2x) |
| Usage category | AC-15, DC-13, according to EN 60947-1 |
| Electromagnetic compatibility (EMC) | EN 60947-5-2 EN 61000-6-3 (2011-09) |
| Ambient operating temperature | –30 °C ... +60 °C 9) |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
| More standards | UL325 10) |
- 1) +- 10 %.
- 2) May not exceed or fall below Uv tolerances.
- 3) Provide suitable spark suppression for inductive or capacitive loads.
- 4) With light/dark ratio 1:1.
- 5) Do not bend below 0 °C.
- 6) C = interference suppression.
- 7) Reference voltage: 250 V AC.
- 8) In the case of a DC supply (ref. to EN 61000-6-3) the length of cable between the supply source and the sensor must be < 30 m.
- 9) UL: 0 °C ... +50 °C.
- 10) Complies with the UL325 standard when used with sturdy protection hood (e.g. BEF-G10WSG, 2071960).
Classifications
| ECl@ss 5.0 | 27270901 |
| ECl@ss 5.1.4 | 27270901 |
| ECl@ss 6.0 | 27270901 |
| ECl@ss 6.2 | 27270901 |
| ECl@ss 7.0 | 27270901 |
| ECl@ss 8.0 | 27270901 |
| ECl@ss 8.1 | 27270901 |
| ECl@ss 9.0 | 27270901 |
| ECl@ss 10.0 | 27270901 |
| ECl@ss 11.0 | 27270901 |
| ETIM 5.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| UNSPSC 16.0901 | 39121528 |
