Sensor

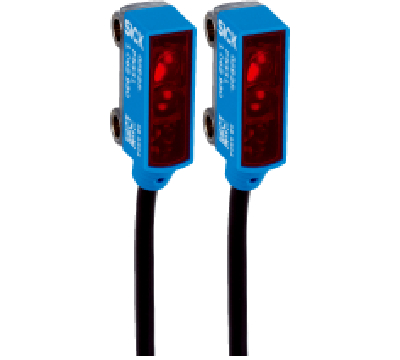

Miniature photoelectric sensors SICK G2S
Type:GSE2S-N1311
Part No.:1064365
Features
| Sensor/ detection principle |
Through-beam photoelectric sensor |
| Dimensions (W x H x D) |
7.7 mm x 21.8 mm x 13.5 mm |
| Housing design (light emission) |
Rectangular |
| Sensing range max. |
0 m ... 2 m |
| Sensing range |
0 m ... 1.5 m |
| Type of light |
Visible red light |
| Light source |
PinPoint LED 1) |
| Light spot size (distance) |
Ø 23 mm (500 mm) |
| Wave length |
640 nm |
| Adjustment |
None |
- 1) Average service life: 100,000 h at TU = +25 °C.
Mechanics/electronics
| Supply voltage |
10 V DC ... 30 V DC 1) |
| Ripple |
< 5 Vpp 2) |
| Current consumption |
20 mA 3) |
| Switching output |
NPN |
| Switching mode |
Light switching |
| Output current Imax. |
≤ 50 mA |
| Response time |
< 0.6 ms 4) |
| Switching frequency |
800 Hz 5) |
| Connection type |
Cable, 3-wire, 2 m 6) |
| Cable material |
PVC |
| Cable diameter |
Ø 3 mm |
| Circuit protection |
A 7)
C 8)
D 9)
|
| Weight |
72.2 g |
| Housing material |
Plastic, ABS |
| Optics material |
Plastic, PMMA |
| Enclosure rating |
IP67 |
| Ambient operating temperature |
–25 °C ... +50 °C |
| Ambient temperature, storage |
–40 °C ... +75 °C |
| UL File No. |
NRKH.E181493 |
- 1) Limit values when operated in short-circuit protected network: max. 8 A.
- 2) May not exceed or fall below Uv tolerances.
- 3) Without load.
- 4) Signal transit time with resistive load.
- 5) With light/dark ratio 1:1.
- 6) Do not bend below 0 °C.
- 7) A = VS connections reverse-polarity protected.
- 8) C = interference suppression.
- 9) D = outputs overcurrent and short-circuit protected.
Safety-related parameters
| MTTFD |
2,595 years |
| DCavg |
0 % |
Classifications| ECl@ss 5.0 | 27270901 |
| ECl@ss 5.1.4 | 27270901 |
| ECl@ss 6.0 | 27270901 |
| ECl@ss 6.2 | 27270901 |
| ECl@ss 7.0 | 27270901 |
| ECl@ss 8.0 | 27270901 |
| ECl@ss 8.1 | 27270901 |
| ECl@ss 9.0 | 27270901 |
| ECl@ss 10.0 | 27270901 |
| ECl@ss 11.0 | 27270901 |
| ETIM 5.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| UNSPSC 16.0901 | 39121528 |
