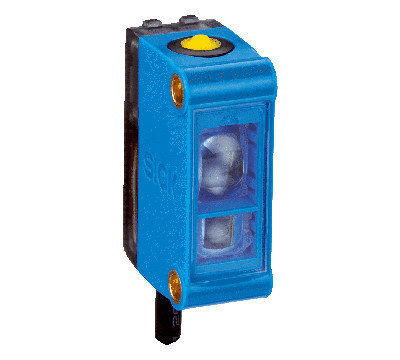

Sensor
Features
Mechanics/electronics
Ambient data
Classifications
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Sensing distance | 12.5 mm 1) |
| Housing design (light emission) | Small |
| Working range | 8 mm ... 20 mm |
| Light source | LED, UV 2) |
| Wave length | 370 nm |
| Light emission | Long side |
| Light spot size | 2 mm x 2.5 mm 3) |
| Light spot direction | Vertical |
| Receiving range | 450 nm ... 750 nm |
| Adjustment | Teach-in button |
| Teach-in mode | 2-point teach-in static/dynamic |
| Output function | Light/dark switching 4) |
- 1) From front edge of lens.
- 2) Average service life: 100,000 h at TU = +25 °C.
- 3) At sensing distance.
- 4) L/D switching via teach-in.
Mechanics/electronics
| Supply voltage | 12 V DC ... 24 V DC 1) |
| Ripple | ≤ 5 Vpp 2) |
| Current consumption | ≤ 50 mA 3) |
| Switching frequency | 6 kHz 4) |
| Response time | 80 µs 5) |
| Jitter | 40 µs |
| Switching output | NPN |
| Switching output (voltage) | NPN: HIGH = approx. UV / LOW ≤ 2 V |
| Switching mode | Light/dark switching |
| Output current Imax. | < 100 mA 6) |
| Input, teach-in (ET) |
NPN Teach: U < 2 V Run: U = 10 V ... < UV |
| Connection type | Cable with M12 male connector, 4-pin, 0.2 m |
| Protection class | III |
| Circuit protection |
UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Enclosure rating | IP67 |
| Weight | 70 g |
| Housing material | Plastic, ABS |
- 1) Limit values: DC 12 V (–10 %) ... DC 24 V (+20 %). Operation in short-circuit protected network max. 8 A.
- 2) May not exceed or fall below Uv tolerances.
- 3) Without load.
- 4) With light/dark ratio 1:1.
- 5) Signal transit time with resistive load.
- 6) At supply voltage > 24 V, Imax = 30 mA. Imax is consumption count of all Qn.
Ambient data
| Ambient operating temperature | –10 °C ... +55 °C |
| Ambient temperature, storage | –20 °C ... +75 °C |
| Shock load | According to IEC 60068 |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
Classifications
| ECl@ss 5.0 | 27270908 |
| ECl@ss 5.1.4 | 27270908 |
| ECl@ss 6.0 | 27270908 |
| ECl@ss 6.2 | 27270908 |
| ECl@ss 7.0 | 27270908 |
| ECl@ss 8.0 | 27270908 |
| ECl@ss 8.1 | 27270908 |
| ECl@ss 9.0 | 27270908 |
| ECl@ss 10.0 | 27270908 |
| ECl@ss 11.0 | 27270908 |
| ETIM 5.0 | EC001822 |
| ETIM 6.0 | EC001822 |
| ETIM 7.0 | EC001822 |
| ETIM 8.0 | EC001822 |
| UNSPSC 16.0901 | 39121528 |
