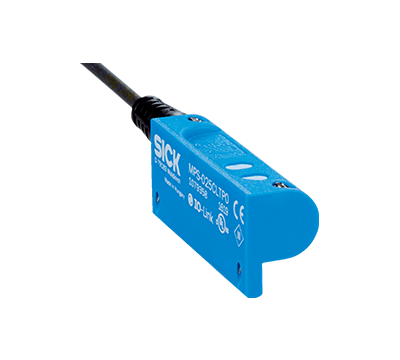

    Position sensors Sick MPS-C

    Type:MPS-025CLTP0
    Part No.:1079358

    add to cart Inquiry Now
    Features
    Cylinder type C-slot
    Cylinder types with adapter

    Round body cylinder

    Profile cylinders and tie-rod cylinders

    SMC rail CDQ2

    SMC rail ECDQ2
    Measuring range 25 mm 1)
    Housing length 41 mm
    Switching output Push-pull: PNP/NPN
    Output function Analog, IO-Link, Switching output
    Electrical wiring DC 4-wire
    Analog output (voltage) 0 V ... 10 V
    Analog output (current) 4 mA ... 20 mA
    Teach-in ✔
    Enclosure rating IP67 2)
    Adjustment
    Teach-in control panel Teaching in analog outputs
    Selecting the current/voltage output
    Inverting the analog output
    Teaching in digital switching outputs
    IO-Link Teaching in 4 switching points
    Pin 2 configuration (0 V–10 V, 4 mA–20 mA)
    Measuring range (mm) teach-in (analog output)
    Disabling teach-in pushbutton
    Teach-in modes per output via IO-Link (cylinder switch mode, two point mode, window mode, and single point mode)
    • 1) , ± 1 mm.
    • 2) According to EN 60529.

    Mechanics/electronics
    Supply voltage 12 V DC ... 30 V DC
    Power consumption 42 mA, without load
    Voltage drop ≤ 2 V
    Continuous current Ia ≤ 100 mA 1)
    Max. load resistance ≤ 500 Ω Power Output, at 24 V
    Min. load resistance ≥ 2 kΩ 2)
    Protection class III
    Time delay before availability 0.15 s
    Required magnetic field sensitivity, typ. 3 mT ... 12 mT
    Resolution, typ. ≥ 50 µm
    Linearity error, typ. 0.3 mm 3)
    Repeat accuracy, typ. 0.1 mm 4)
    Sampling rate, typ. 1 ms
    Digital switching output ✔
    IO-Link ✔
    Status indicator LED ✔
    Reverse polarity protection ✔
    Short-circuit protection ✔
    Ambient operating temperature –20 °C ... +70 °C
    Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
    EMC According to EN 60947-5-7 5)
    Connection type Cable with M8 male connector, 4-pin, 0.3 m
    Connection type Detail
    Deep-freeze property Do not bend below 0 °C
    Conductor cross-section 0.08 mm²
    Cable diameter Ø 2.6 mm
    Bending radius With fixed installation > 5 x cable diameter
      For flexible use > 10 x cable diameter
    Cable outlet Axial
    Material
    Housing Plastic
    Cable PUR
    UL File No. NRKH.E181493 & NRKH7.E181493
    • 1) ≤ 100 mA (PUSH); ≥ –100 mA (PULL).
    • 2) Voltage output.
    • 3) At 25 ° C, linearity error (maximum deviation) depending on response curve and minimal deviation function.
    • 4) At 25 ° C, repeatability magnet movement in one direction.
    • 5) The analog measured value can deviate under transient conditions.

    Safety-related parameters
    MTTFD 244 years
    DCavg 0 %
    TM (mission time) 20 years

    Communication interface
    Communication interface IO-Link V1.1
    Communication Interface detail COM3
    Cycle time 1 ms
    Process data length 16 Bit
    Process data structure

    Bit 0 = switching signal QL1

    Bit 1 = switching signal QL2

    Bit 2 = switching signal QL3

    Bit 3 = switching signal QL4

    Bit 4 ... 15 = position (in 50 μm)

    Classifications
    ECl@ss 5.0 27270104
    ECl@ss 5.1.4 27270104
    ECl@ss 6.0 27270104
    ECl@ss 6.2 27270104
    ECl@ss 7.0 27270104
    ECl@ss 8.0 27270104
    ECl@ss 8.1 27270104
    ECl@ss 9.0 27270104
    ECl@ss 10.0 27270104
    ECl@ss 11.0 27270104
    ETIM 5.0 EC002544
    ETIM 6.0 EC002544
    ETIM 7.0 EC002544
    ETIM 8.0 EC002544
    UNSPSC 16.0901 39122230
