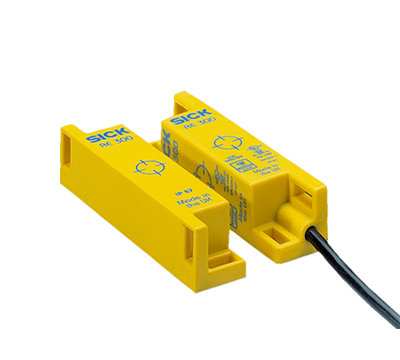

Non-contact safety switches SICK RE300/Magnetic safety switch
Type:RE300-DA10P
Part No.:6025079
Part No.:6025079
Non-contact safety switches SICK RE300/Magnetic safety switch
Features
Safety-related parameters
Functions
Interfaces
Electrical data
Mechanical data
Ambient data
Classifications
Features
| System part | Sensor with actuator |
| Sensor principle | Magnetic |
| Number of N/O contacts | 1 |
| Number of N/C contacts | 1 |
| Safe switch on distance Sao | 5 mm |
| Safe switch off distance Sar | 15 mm |
| Active sensor surfaces | 2 |
| Actuation directions | 5 |
Safety-related parameters
| B10d parameter | 2 x 107 switching cycles (with small load) |
| Type | Type 4 (EN ISO 14119) |
| Actuator coding level | Low coding level (EN ISO 14119) |
| Safe state in the event of a fault | The switch has no internal fault detection and is unable to assume a safe state in the event of a fault. Fault detection is performed by the connected safety-related logic unit. |
Functions
| Safe series connection | None, only individual wiring (with diagnostics) |
Interfaces
|
|||||||
Electrical data
| Type of output | Reed contacts |
| Switching voltage | ≤ 30 V DC |
| Switching current | ≤ 30 mA |
Mechanical data
| Design | Rectangular |
| Dimensions (W x H x D) | 19 mm x 82 mm x 19 mm |
| Weight | + 0.322 kg |
| Housing material | ABS shape |
Ambient data
| Enclosure rating | IP67 |
| Ambient operating temperature | –10 °C ... +55 °C |
| Storage temperature | –25 °C ... +70 °C |
| Vibration resistance | 10 Hz ... 55 Hz, 0.35 mm (IEC 60068-2-6) |
| Shock resistance | 30 g (IEC 60068-2-29) |
Classifications
| ECl@ss 5.0 | 27272402 |
| ECl@ss 5.1.4 | 27272402 |
| ECl@ss 6.0 | 27272402 |
| ECl@ss 6.2 | 27272402 |
| ECl@ss 7.0 | 27272402 |
| ECl@ss 8.0 | 27272402 |
| ECl@ss 8.1 | 27272402 |
| ECl@ss 9.0 | 27272402 |
| ECl@ss 10.0 | 27272402 |
| ECl@ss 11.0 | 27272402 |
| ETIM 5.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 8.0 | EC002544 |
| UNSPSC 16.0901 | 39122205 |
