Sensor

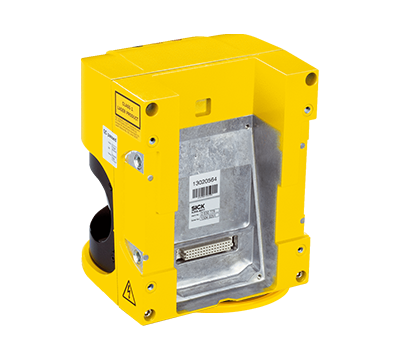

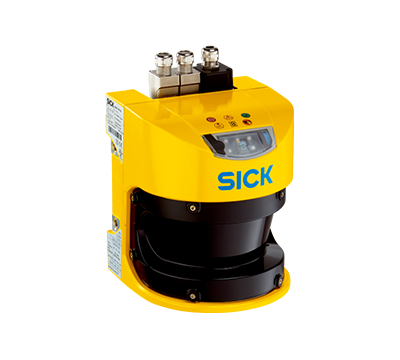

Safety laser scanners SICK S3000 Standard / Sensor without system plug
Type:S30A-6011
Part No.:2022972
Part No.:2022972
Safety laser scanners SICK S3000 Standard / Sensor without system plug
Features
Safety-related parameters
Functions
Electrical data
Ambient data
Other information
Classifications
Features
| Model | Sensor without system plug |
| Application | Indoor |
| Protective field range | 5.5 m |
| Number of simultaneously monitored protective fields | ≤ 4 1) |
| Scanning angle | 190° |
| Angular resolution | Depending on range and resolution |
| Response time | 60 ms 2) |
- 1) If several protective fields are monitored simultaneously, the shut-off signals must be connected to safe outputs on a Flexi Soft safety controller or routed via a safe EFI gateway.
- 2) Depending on basic response time and multiple sampling.
Safety-related parameters
| Type | Type 3 (IEC 61496) |
| Safety integrity level | SIL2 (IEC 61508) |
| Category | Category 3 (EN ISO 13849) |
| Performance level | PL d (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 8.0 x 10-8 (EN ISO 13849) |
| TM (mission time) | 20 years (EN ISO 13849) |
Functions
| External device monitoring (EDM) | ✔ |
| Integrated configuration memory | ✔ |
| Measured data output | Via RS-422 |
| Safe SICK device communication via EFI | ✔ |
Electrical data
| Protection class | II (EN 50178) |
Ambient data
| Enclosure rating | IP65 (EN 60529) |
| Ambient operating temperature | –10 °C ... +50 °C |
| Storage temperature | –25 °C ... +50 °C |
| Vibration resistance | 5 g, 10 Hz ... 150 Hz (IEC 61496, IEC 61496-3) |
| Shock resistance | 10 g, 16 ms (IEC 61496, IEC 61496-3) |
Other information
| Type of light | Pulsed laser diode |
| Wave length | 905 nm |
| Detectable remission | 1.8 % ... > 1,000 %, reflectors |
| Laser class | 1 (21 CFR 1040.10 and 1040.11, IEC 60825-1) |
Classifications
| ECl@ss 5.0 | 27272705 |
| ECl@ss 5.1.4 | 27272705 |
| ECl@ss 6.0 | 27272705 |
| ECl@ss 6.2 | 27272705 |
| ECl@ss 7.0 | 27272705 |
| ECl@ss 8.0 | 27272705 |
| ECl@ss 8.1 | 27272705 |
| ECl@ss 9.0 | 27272705 |
| ECl@ss 10.0 | 27272705 |
| ECl@ss 11.0 | 27272705 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 39121528 |
