Sensor
Mechanics/electronics
Performance
Interfaces
Ambient data
Classifications
| Supply voltage Vs | DC 10 V ... 30 V 1) |
| Power consumption | ≤ 0.75 W 2) |
| Initialization time | < 300 ms |

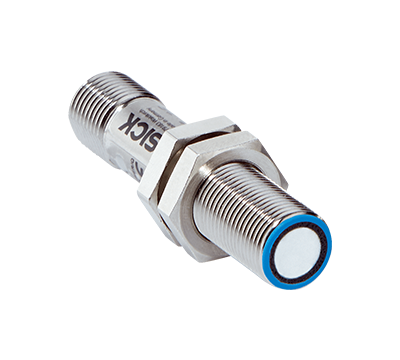

| Design | Cylindrical |
| Housing material |
Metal (nickel-plated brass, PBT) Ultrasonic transducer: polyurethane foam, glass epoxy resin |
| Thread size | M12 x 1 |
| Connection type | Male connector, M12, 4-pin |
| Indication | 2 x LED |
| Weight | 15 g |
| Sending axis | Straight |
| Dimensions (W x H x D) | 12 mm x 12 mm x 55.1 mm |
| Enclosure rating | IP65 / IP67 |
| Protection class | III |
- 1) Limit values, reverse-polarity protected Operation in short-circuit protected network: max. 8 A, class 2.
- 2) Without load.
Performance
| Operating range, limiting range | 20 mm ... 150 mm, 250 mm |
| Target | Natural objects |
| Resolution | ≥ 0.069 mm |
| Repeatability | ± 0.15 % 1) |
| Accuracy | ± 1 % 2) |
| Temperature compensation | ✔ |
| Response time | 24 ms |
| Switching frequency | 30 Hz |
| Output time | 8 ms |
| Ultrasonic frequency (typical) | 380 kHz |
| Additional function | Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB), teach-in of digital output, invertible digital output, reset to factory default 3) |
- 1) In relation to the current measured value, minimum value ≥ resolution.
- 2) Referring to current measurement value.
- 3) Functions may vary depending on sensor type.
Interfaces
|
|||||||||
| Hysteresis | 2 mm | ||||||||
- 1) PNP: HIGH = VS - (< 2 V) / LOW = 0 V.
Ambient data
| Ambient temperature, operation | –25 °C ... +70 °C |
| Ambient temperature, storage | –40 °C ... +85 °C |
Classifications
| ECl@ss 5.0 | 27270804 |
| ECl@ss 5.1.4 | 27270804 |
| ECl@ss 6.0 | 27270804 |
| ECl@ss 6.2 | 27270804 |
| ECl@ss 7.0 | 27270804 |
| ECl@ss 8.0 | 27270804 |
| ECl@ss 8.1 | 27270804 |
| ECl@ss 9.0 | 27270804 |
| ECl@ss 10.0 | 27270804 |
| ECl@ss 11.0 | 27270804 |
| ETIM 5.0 | EC001846 |
| ETIM 6.0 | EC001846 |
| ETIM 7.0 | EC001846 |
| ETIM 8.0 | EC001846 |
| UNSPSC 16.0901 | 41111960 |
