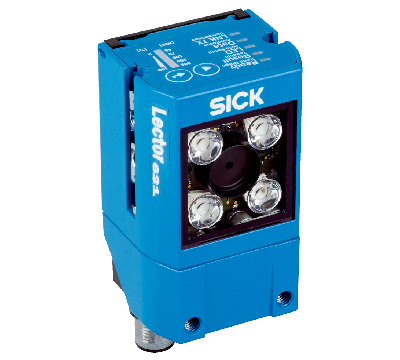

    Image-based code readers SICK Lector62x / Lector621

    Type:V2D621R-2MSFBB5
    Part No.:1085372
    add to cart Inquiry Now
    Features
    Optical focus Teach auto focus
    Sensor CMOS matrix sensor, grayscale values
    Sensor resolution 1,280 px x 1,024 px
    Light source
    Internal lighting LED, Visible, Red, 617 nm, ± 15 nm
    Internal lighting LED, Visible, blue, 470 nm, ± 15 nm
    Feedback spot LED, Visible, green, 525 nm, ± 15 nm
    Adjustment aid Laser, Visible, Red, 630 nm ... 680 nm
    LED class 1 (IEC 62471:2006-07, EN 62471:2008-09)
    Laser class 1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
    Scanning frequency 50 Hz
    Code resolution ≥ 0.05 mm 1)
    Reading distance 70 mm ... 1,500 mm 1) 2)
    Lens
    Focal length 9.6 mm
    • 1) For details see reading field diagram.
    • 2) Valid for Data Matrix, PDF417, and 1D codes with good print quality.


    Mechanics/electronics
    Connection type

    1 x M12, 17-pin male connector

    1 x M12, 4-pin Ethernet female connector

    Circular plug-in connector
    Supply voltage 12 V DC ... 24 V DC, ± 20 %
    Power consumption Typ. 4 W
    Housing Aluminum die cast
    Housing color Light blue (RAL 5012)
    Enclosure rating IP65 (EN 60529, EN 60529/A2)
    Protection class III
    Electrical safety EN 62368
    Weight 170 g
    Dimensions (L x W x H) 71 mm x 43 mm x 35.6 mm 1)
    MTBF 75,000 h
    • 1) Swivel connector is 17.8 mm longer.


    Performance
    Readable code structures 1D codes, Stacked, 2D codes
    Bar code types GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, Plessey Code, MSI/Plessey, Telepen, postal codes
    2D code types Data Matrix ECC200, GS1 Data-Matrix, PDF417, PDF417 Truncated, QR code, MaxiCode
    Code qualification On the basis of ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 18004
    No. of codes per reading interval 1 ... 50
    No. of characters per reading interval 500 (for multiplexer function in CAN operation)
    Automated parameter switching ✔


    Interfaces
    Ethernet ✔ , TCP/IP
    Function Host, AUX, FTP (image transmission)
    Data transmission rate 10/100 MBit/s
    PROFINET ✔
    Function PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2)
    Data transmission rate 10/100 MBit/s
    EtherNet/IP™ ✔
    Data transmission rate 10/100 MBit/s
    EtherCAT® ✔
    Type of fieldbus integration Optional over external fieldbus module CDF600
    Serial ✔ , RS-232, RS-422
    Function Host, AUX
    Data transmission rate 0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
    CAN ✔
    Function SICK CAN sensor network CSN (master/slave, multiplexer/server)
    Data transmission rate 20 kbit/s ... 1 Mbit/s
    CANopen ✔
    Data transmission rate 20 kbit/s ... 1 Mbit/s
    PROFIBUS DP ✔
    Type of fieldbus integration Optional over external fieldbus module CDF600-2
    USB ✔
    Remark USB 2.0 (for parameterization only)
    Function AUX
    Digital inputs 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDM420)
    Digital outputs 4 (“Result 1”, “Result 2”, 2 outputs via CMC and CDM420 or “Result 1”, “Result 2”, “Result 3”, “Result 4” when using the 17-wire cable with open cable end)
    Reading pulse Digital inputs, non-powered, serial interface, Ethernet, CAN, auto pulse, presentation mode
    Optical indicators 16 LEDs (5 x status display, 10 x LED bar graph, 1 green feedback spot)
    Acoustic indicators Beeper/buzzer (can be switched off, can be assigned a function to signal a result)
    Control elements 2 buttons (choose and start/stop functions)
    Operator interfaces Web server
    Configuration software SOPAS ET
    Memory card microSD memory card (flash card), optional
    Data storage and retrieval Image and data storage via microSD memory card and external FTP
    Maximum encoder frequency 300 Hz
    External illumination control Via digital output (max. 24 V trigger)


    Ambient data
    Electromagnetic compatibility (EMC) EN 61000-6-2:2005-08 / EN 61000-6-4 (2007-01) + A1 (2011)
    Vibration resistance EN 60068-2-6:2008-02
    Shock resistance EN 60068-2-27:2009-05
    Ambient operating temperature 0 °C ... +50 °C
    Storage temperature –20 °C ... +70 °C
    Permissible relative humidity 90 %, Non-condensing
    Ambient light immunity 2,000 lx, on code


    Classifications
    ECl@ss 5.0 27280103
    ECl@ss 5.1.4 27280103
    ECl@ss 6.0 27280103
    ECl@ss 6.2 27280103
    ECl@ss 7.0 27280103
    ECl@ss 8.0 27280103
    ECl@ss 8.1 27280103
    ECl@ss 9.0 27280103
    ECl@ss 10.0 27280103
    ECl@ss 11.0 27280103
    ETIM 5.0 EC002550
    ETIM 6.0 EC002550
    ETIM 7.0 EC002999
    ETIM 8.0 EC002999
    UNSPSC 16.0901 43211701
