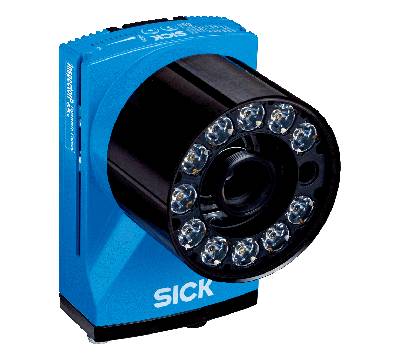

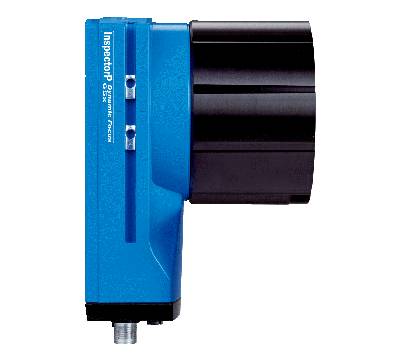

    2D machine vision SICK InspectorP65x / InspectorP654 Dynamic Focus

    Type:V2D654P-2MEWHA6
    Part No.:1082306
    add to cart Inquiry Now
    Features
    Task

    Presence inspection

    Quality inspection

    Measuring, 2D

    Positioning

    Code reading
    Technology 2D snapshot, image analysis
    Product category Programmable
    Sensor CMOS matrix sensor, grayscale values
    Shutter technology Global-Shutter
    Optical focus Dynamic focus control
    Light source
    Internal lighting LED, Visible, White, 6,000 K, ± 500 K
    Internal lighting LED, Visible, blue, 455 nm
    Feedback spot LED, Visible, green, 525 nm, ± 15 nm
    Adjustment aid Laser, Visible, Red, 630 nm ... 680 nm
    Laser class 1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
    LED class “White + feedback LED” option: risk group 1 (low risk) according to IEC 62471-1:2006-07/EN 62471-1:2008-09
    Irradiance: LB: < 10 x 103 W/(m2sr) within 100 s; at a distance of ≥ 200 mm
    LR: < 7 x 105 W/(m2sr) within 10 s; at a distance of ≥ 200 mm, “Blue + feedback LED” option: risk group 2 (moderate risk) according to IEC 62471-1:2006-07/EN 62471-1:2008-09 due to exposure to blue light.
    Irradiance: LB: < 10 x 103 W/(m2sr) within 50 s (RG 2); at a distance of ≥ 200 mm
    LR: < 7 x 105 W/(m2sr) within 10 s (RG 1); at a distance of ≥ 200 mm
    Risk RG 1 (low risk) corresponding to LB < 10 x 103 W/(m2sr) within 100 s for distances > 1 m
    Spectral range Approx. 400 nm ... 900 nm
    Lens
    Optical format 1″


    Mechanics/electronics
    Connection type

    1 x M12, 17-pin male connector (serial, I/Os, voltage supply)

    1 x M8, 4-pin female connector (USB, not used)

    2 x M12, 8-pin female connector (Gigabit Ethernet, only one connection used)
    Supply voltage 24 V DC, ± 20 %
    Enclosure rating IP65 (EN 60529 (1991-10), EN 60529/A2 (2002-02))
    Protection class III (EN 60950-1 (2014-08))
    Housing material Aluminum die cast
    Window material Glass
    Weight 963 g
    Dimensions (L x W x H) 142.8 mm x 90 mm x 106.1 mm


    Performance
    Sensor resolution 2,048 px x 2,048 px (4.2 Mpixel)
    Scan/frame rate 40 Hz


    Interfaces
    Serial ✔ , RS-232, RS-422
    Data transmission rate 300 Baud ... 115.2 kBaud
    Ethernet ✔ , TCP/IP
    Function FTP, HTTP
    Data transmission rate 10/100/1,000 Mbit/s
    CAN ✔
    Function SICK CAN sensor network (master/slave)
    EtherNet/IP™ ✔
    Data transmission rate 10/100/1,000 Mbit/s
    PROFINET ✔
    Function PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2)
    Data transmission rate 10/100 MBit/s
    Operator interfaces Web server
    Configuration software SICK AppStudio
    Data storage and retrieval Image and data logging via microSD memory card and external FTP
    Inputs/outputs 2 opto-decoupled inputs, 4 inputs/outputs, configurable
    Output current ≤ 100 mA
    Maximum encoder frequency 1 kHz
    External illumination control Via digital output (max. 24 V trigger)
    Control elements 2 buttons
    Optical indicators 21 LEDs (10 x status display, 10 x LED bar graph, 1 green feedback spot)
    Acoustic indicators Beeper


    Ambient data
    Shock load EN 60068-2-27:2009-05
    Vibration load EN 60068-2-6:2008-02
    Ambient operating temperature 0 °C ... +50 °C 1)
    Storage temperature –20 °C ... +70 °C 1)
    • 1) Permissible relative air humidity: 0 % ... 90 % (non-condensing).


    Classifications
    ECl@ss 5.0 27310205
    ECl@ss 5.1.4 27310205
    ECl@ss 6.0 27310205
    ECl@ss 6.2 27310205
    ECl@ss 7.0 27310205
    ECl@ss 8.0 27310205
    ECl@ss 8.1 27310205
    ECl@ss 9.0 27310205
    ECl@ss 10.0 27310205
    ECl@ss 11.0 27310205
    ETIM 5.0 EC001820
    ETIM 6.0 EC001820
    ETIM 7.0 EC001820
    ETIM 8.0 EC001820
    UNSPSC 16.0901 43211731
