Sensor

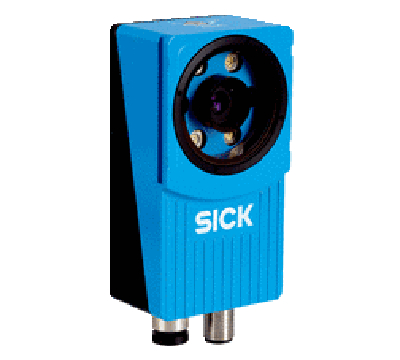

2D machine vision SICK Inspector / Inspector P-series
Type:VSPP-3F1122
Part No.:1051982
Part No.:1051982
Features
Mechanics/electronics
Performance
Interfaces
Ambient data
Classifications
| Task |
Presence inspection Quality inspection Measuring, 2D Positioning Robot guidance |
||||||
| Technology | 2D snapshot, image analysis | ||||||
| Product category | Configurable | ||||||
| Toolkit |
Blob locator Object locator |
||||||
| Sensor | CMOS matrix sensor, grayscale values | ||||||
| Optical focus | Adjustable focus (manually) | ||||||
| Working distance | ≥ 50 mm | ||||||
| Operating distance with internal illumination | 50 mm ... 200 mm | ||||||
| Field of view of internal illumination | 20 mm x 20 mm ... 72 mm x 72 mm | ||||||
|
|||||||
| LED class | Risk group 1 (low risk, IEC62471 : 2006) | ||||||
| Spectral range | Approx. 400 nm ... 750 nm | ||||||
| Offline support | Emulator | ||||||
|
|||||||
Mechanics/electronics
| Connection type |
M12, 12-pin male connector M12, 4-pin female connector |
| Supply voltage | 24 V DC, ± 20 % |
| Ripple | < 5 Vpp |
| Current consumption | < 450 mA, without output load |
| Enclosure rating | IP67 1) |
| Housing material | Aluminum |
| Window material | PMMA |
| Weight | 350 g |
| Dimensions (L x W x H) | 100 mm x 53 mm x 38 mm |
- 1) With front window mounted.
Performance
| Sensor resolution | 384 px x 384 px |
| Scan/frame rate | 40 fps 1) |
| Reference images | 16 objects |
- 1) Max. 750fps.
Interfaces
| Ethernet | ✔ , TCP/IP |
| Data transmission rate | 100 Mbit/s |
Ambient data
| Shock load | EN 60068-2-27 |
| Vibration load | IEC 60068-2-6 |
| Ambient operating temperature | 0 °C ... +45 °C 1) |
| Storage temperature | –20 °C ... +70 °C 1) |
- 1) Relative humidity: 35% ... 85%, 95% in storage.
Classifications
| ECl@ss 5.0 | 27310205 |
| ECl@ss 5.1.4 | 27310205 |
| ECl@ss 6.0 | 27310205 |
| ECl@ss 6.2 | 27310205 |
| ECl@ss 7.0 | 27310205 |
| ECl@ss 8.0 | 27310205 |
| ECl@ss 8.1 | 27310205 |
| ECl@ss 9.0 | 27310205 |
| ECl@ss 10.0 | 27310205 |
| ECl@ss 11.0 | 27310205 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 43211731 |
