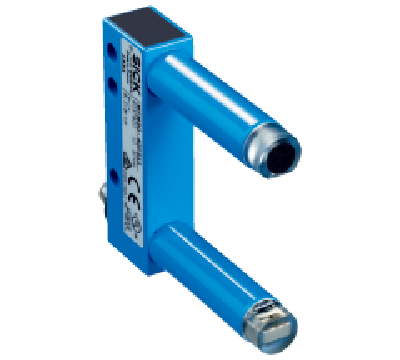

Sensor
Features
Mechanics/electronics
Ambient data
Classifications
| Functional principle | Optical detection principle |
| Dimensions (W x H x D) | 10 mm x 100 mm x 77.5 mm |
| Housing design (light emission) | Fork shaped |
| Fork width | 80 mm |
| Fork depth | 60 mm |
| Minimum detectable object (MDO) | 0.8 mm |
| Light source | LED, red |
| Adjustment | None |
Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | < 10 % 2) |
| Current consumption | < 20 mA 3) |
| Switching frequency | 4 kHz 4) |
| Response time | 125 µs 5) |
| Stability of response time | ± 15 µs |
| Switching output | PNP |
| Switching output (voltage) |
PNP: HIGH = VS – ≤ 1.5 V / LOW = 0 V NPN: HIGH = approx. VS / LOW ≤ 1.5 V |
| Switching mode | Light switching |
| Output current Imax. | 100 mA |
| Initialization time | 140 ms |
| Connection type | Connector M8, 3-pin |
| Protection class | III 6) |
| Circuit protection |
UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
| Enclosure rating | IP67 |
| Weight | Approx. 80 g ... 190 g 7) |
| Housing material | Metal, Aluminum |
- 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
- 2) May not exceed or fall below Uv tolerances.
- 3) Without load.
- 4) With light/dark ratio 1:1.
- 5) Signal transit time with resistive load.
- 6) Reference voltage DC 50 V.
- 7) Depending on fork width.
Ambient data
| Ambient operating temperature | –10 °C ... +60 °C 1) |
| Ambient temperature, storage | –40 °C ... +80 °C |
| Ambient light immunity | ≤ 10,000 lx |
| Shock load | According to EN 60068-2-27 |
| UL File No. | NRKH.E191603 & NRKH7.E191603 |
- 1) Do not bend below 0 °C.
Classifications
| ECl@ss 5.0 | 27270909 |
| ECl@ss 5.1.4 | 27270909 |
| ECl@ss 6.0 | 27270909 |
| ECl@ss 6.2 | 27270909 |
| ECl@ss 7.0 | 27270909 |
| ECl@ss 8.0 | 27270909 |
| ECl@ss 8.1 | 27270909 |
| ECl@ss 9.0 | 27270909 |
| ECl@ss 10.0 | 27270909 |
| ECl@ss 11.0 | 27270909 |
| ETIM 5.0 | EC002720 |
| ETIM 6.0 | EC002720 |
| ETIM 7.0 | EC002720 |
| ETIM 8.0 | EC002720 |
| UNSPSC 16.0901 | 39121528 |
