Sensor

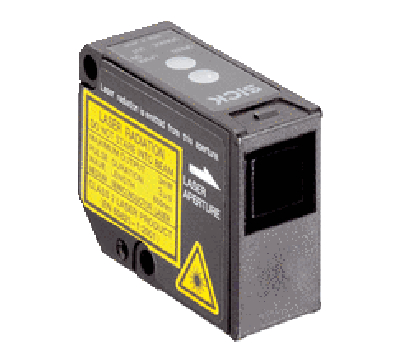

Miniature photoelectric sensors SICK W130 Laser
Type:WL130L-32
Part No.:6029862
Features
| Sensor/ detection principle |
Photoelectric retro-reflective sensor |
| Dimensions (W x H x D) |
13.4 mm x 26.5 mm x 34.6 mm |
| Housing design (light emission) |
Rectangular |
| Sensing range max. |
0 m ... 10 m |
| Sensing range |
0 m ... 7 m |
| Type of light |
Visible red light |
| Light source |
Laser 1) |
| Light spot size (distance) |
Ø 2 mm (2 m) |
| Laser class |
2, IEC 60 825-1/C.D.R.H. |
| XXX |
26 mm x 0.5 mm (200 mm) |
| Adjustment |
None |
- 1) Average service life: 50,000 h at TU = +25 °C.
Mechanics/electronics
| Connection type |
Cable with male connector, 2 m 1) 2) |
| Cable material |
PVC/PBT |
| Protection class |
III |
| Weight |
35 g |
| Polarisation filter |
✔ |
| Housing material |
Plastic, PC |
| Optics material |
Plastic, PMMA |
| Enclosure rating |
IP67 |
| Items supplied |
P41F reflector |
| Ambient operating temperature |
–10 °C ... +55 °C |
| Ambient temperature, storage |
–25 °C ... +70 °C |
| UL File No. |
242361 (0720256-00) |
- 1) Connection between sensor head and evaluation unit with system-specific connector.
- 2) Do not bend below 0 °C.
Classifications| ECl@ss 5.0 | 27270902 |
| ECl@ss 5.1.4 | 27270902 |
| ECl@ss 6.0 | 27270902 |
| ECl@ss 6.2 | 27270902 |
| ECl@ss 7.0 | 27270902 |
| ECl@ss 8.0 | 27270902 |
| ECl@ss 8.1 | 27270902 |
| ECl@ss 9.0 | 27270902 |
| ECl@ss 10.0 | 27270902 |
| ECl@ss 11.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
