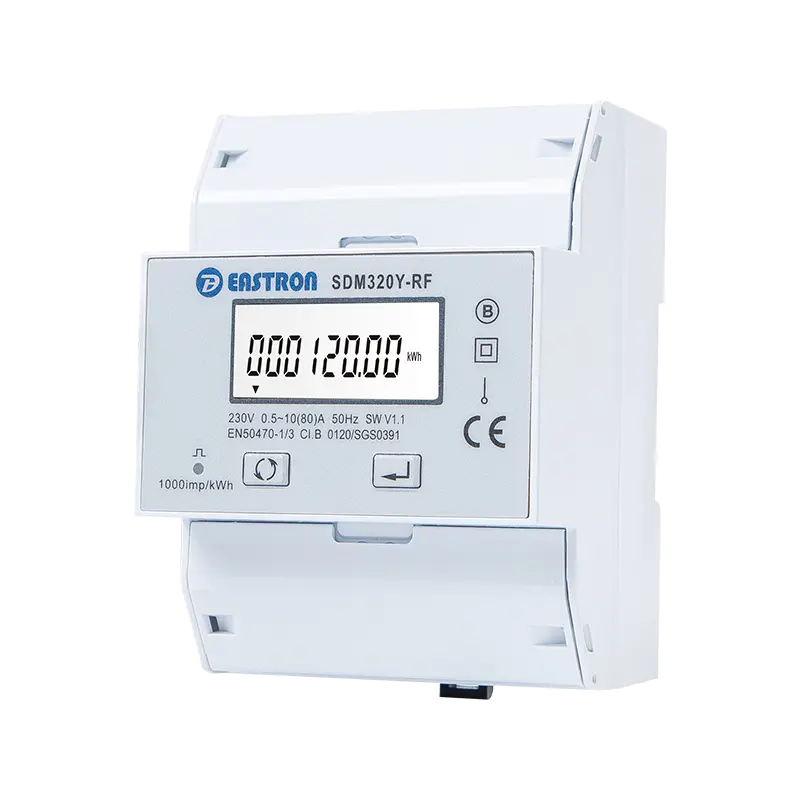

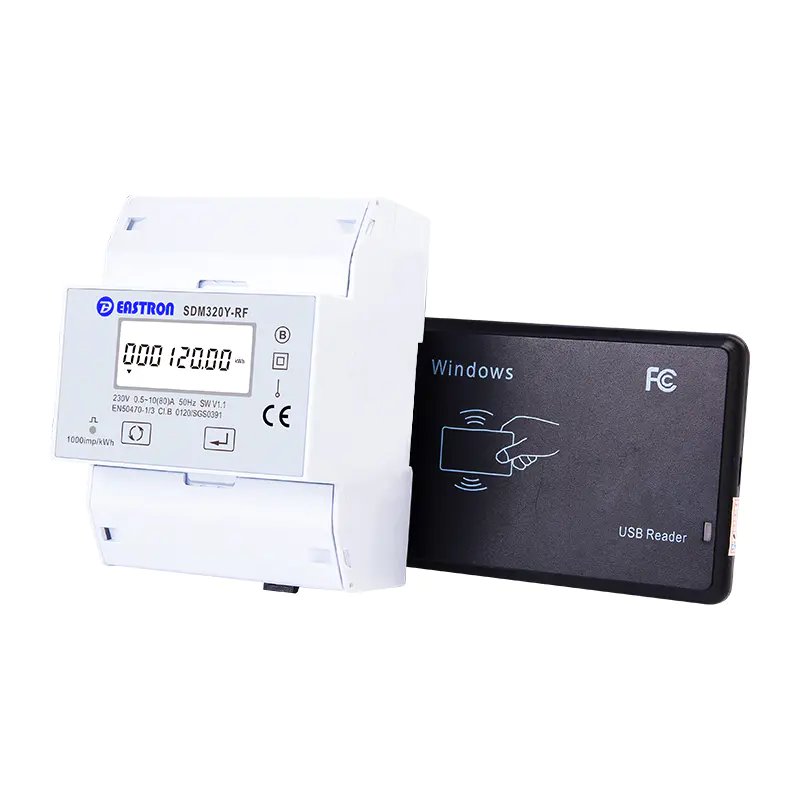

Single Phase Energy Meter With Ic Rf Card For Prepay System Eastron SDM320Y-RF
- 100A Max. Direct Load
- 4 Module wide
- Credit alarms
- RF Recharging
|
Electrical characteristics |
||
|
Type of measurement |
RMS including on single phase AC system |
|
|
Measurement accuracy |
Power |
1% |
|
Active Energy |
IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0 |
|
|
Reactive Energy |
IEC62053-23 Class 2, IEC 61557-12 Class 2 |
|
|
Frequency |
±0.2% |
|
|
Current |
±0.5% |
|
|
Voltage |
±0.5% |
|
|
Power Factor |
±0.01 |
|
|
Input & Output |
|||
|
Input |
Current |
Rated Current |
5A |
|
Max Current |
100A |
||
|
Min Current |
0.25A |
||
|
Starting Current |
40mA |
||
|
Voltage |
Rated Volatge (Un) |
230V |
|
|
Operational Volatge |
80% ~ 120% of Un |
||
|
Output |
SDM320C |
Pulse Output + RS485 Modbus |
|
|
SDM320Y |
Pulse Output + RS485 Modbus |
||
|
SDM320Y-RF |
Pulse Output + RF |
||
|
SDM320C-DI |
Pulse Output + RS485 Modbus + Digital Input |
||
|
RS485 Modbus Communications |
|
|
Communication address |
1~247 |
|
Transmission distance |
1000m Maximum |
|
Baud Rate |
1200bps~9600bps |
|
Parity |
None (default), Odd, Even |
|
Stop bits |
1 or 2 |
