Sensor
Features
Mechanics/electronics
Safety-related parameters
Classifications

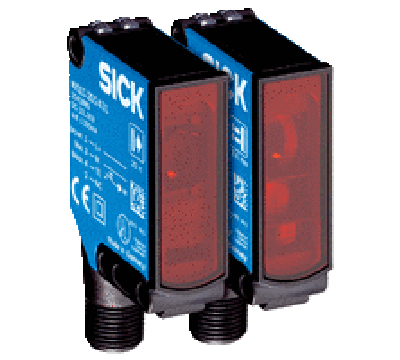

| Sensor/ detection principle | Through-beam photoelectric sensor |
| Dimensions (W x H x D) | 15.6 mm x 48.5 mm x 42 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 m ... 20 m |
| Sensing range | 0 m ... 15 m |
| Type of light | Visible red light |
| Light source | LED 1) |
| Light spot size (distance) | Ø 220 mm (15 m) |
| Angle of dispersion | Approx. 1.5° |
| Wave length | 633 nm |
| Adjustment | None |
- 1) Average service life: 100,000 h at TU = +25 °C.
Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | ≤ 5 Vpp 2) |
| Power consumption, sender | ≤ 25 mA 3) |
| Power consumption, receiver | ≤ 20 mA 3) |
| Switching output | PNP |
| Output function | Complementary |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | Uv - 2.5 V / approx. 0 V |
| Output current Imax. | 100 mA |
| Response time | ≤ 2.5 ms 4) |
| Switching frequency | 200 Hz 5) |
| Connection type | Male connector M12, 4-pin |
| Circuit protection |
A 6) C 7) D 8) |
| Protection class | II |
| Weight | 120 g |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating |
IP66 IP67 IP69K |
| Test input sender off | TE to 0 V |
| Ambient operating temperature | –30 °C ... +60 °C |
| Ambient storage temperature | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
| Part number of individual components | 2063410 WS11-2D2430 2063411 WE11-2P2430 |
- 1) Limit values when operated in short-circuit protected network: max. 8 A.
- 2) May not exceed or fall below Uv tolerances.
- 3) Without load.
- 4) Signal transit time with resistive load.
- 5) With light/dark ratio 1:1.
- 6) A = VS connections reverse-polarity protected.
- 7) C = interference suppression.
- 8) D = outputs overcurrent and short-circuit protected.
Safety-related parameters
| MTTFD | 1,091 years |
| DCavg | 0% |
Classifications
| ECl@ss 5.0 | 27270901 |
| ECl@ss 5.1.4 | 27270901 |
| ECl@ss 6.0 | 27270901 |
| ECl@ss 6.2 | 27270901 |
| ECl@ss 7.0 | 27270901 |
| ECl@ss 8.0 | 27270901 |
| ECl@ss 8.1 | 27270901 |
| ECl@ss 9.0 | 27270901 |
| ECl@ss 10.0 | 27270901 |
| ECl@ss 11.0 | 27270901 |
| ETIM 5.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| UNSPSC 16.0901 | 39121528 |
