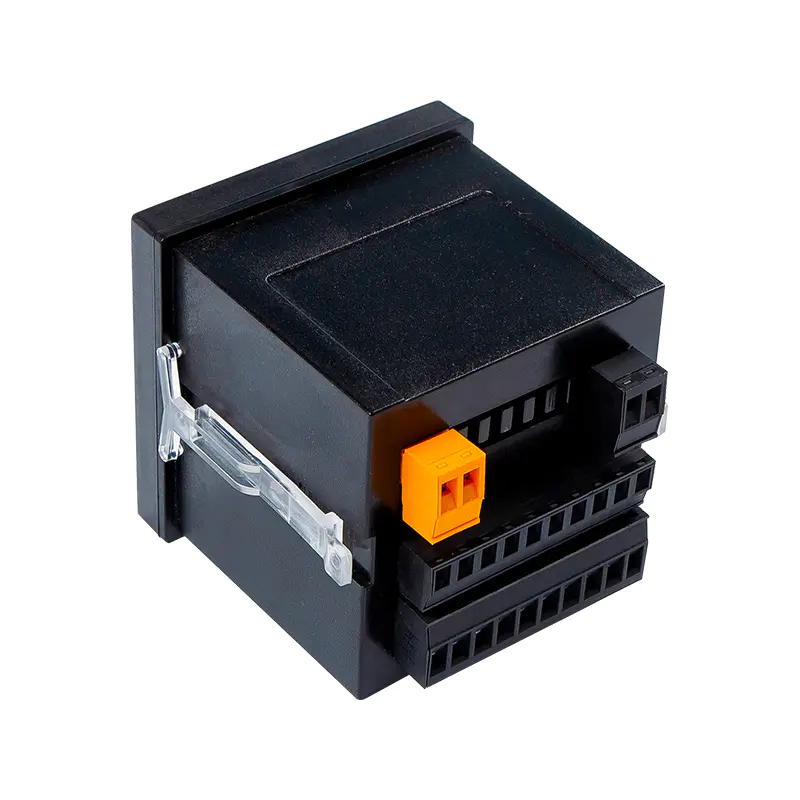

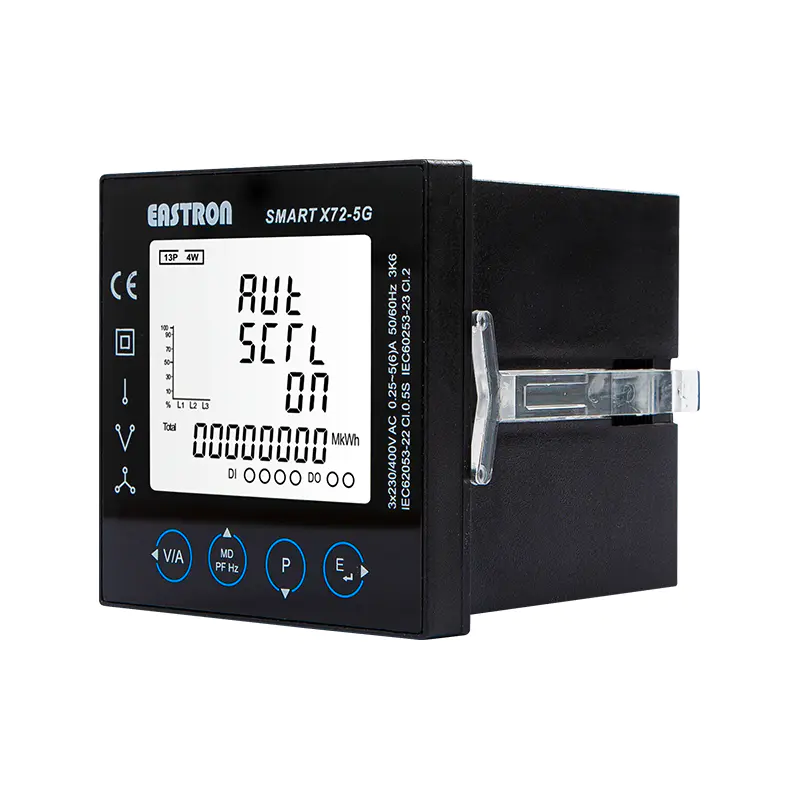

Smart Power Analyzer Eastron Smart X72-5G
- Digital Input and Digital Output
- Measure THD of voltage and current
- IHD up to 15th
- Multi-parameters measurement
- RS485 Modbus RTU and Pulse Outputs
- CT and PT programmable
- Bar graph for power indication
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS including harmonics on three phase AC system (3P, 3P+N) |
|
|
Measurement Accuracy |
Active Power |
1.0% of range maximum |
|
Reactive Power |
1.0% of range maximum |
|
|
Apparent Power |
1.0% of range maximum |
|
|
Active Energy |
IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0 |
|
|
Reactive Energy |
IEC62053-23 Class 2 |
|
|
Frequency |
0.2% of mid-frequency |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Power Factor |
1% of unity (0.01) |
|
|
THD |
2% to 15th harmonic |
|
|
Input |
||
|
Current |
CT Primary |
1-9999A |
|
CT Secondary |
1A/5A |
|
|
Min Current |
0.25A |
|
|
Starting Current |
20mA |
|
|
Voltage |
Aux.Power Supply |
230V L-N AC or 120V~380V DC |
|
Measured Voltage |
50V ~ 600V (3P4W) 50V ~480V (3P3W) |
|
|
Modbus Communications |
|
|
Interface Standard and Protocol |
RS485 and MODBUS RTU |
|
Communication Address |
1~247 |
|
Transmission Mode |
Half Duplex |
|
Data Type |
Floating Point |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
2400bps~38400bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
Response Time |
<100 mS |
