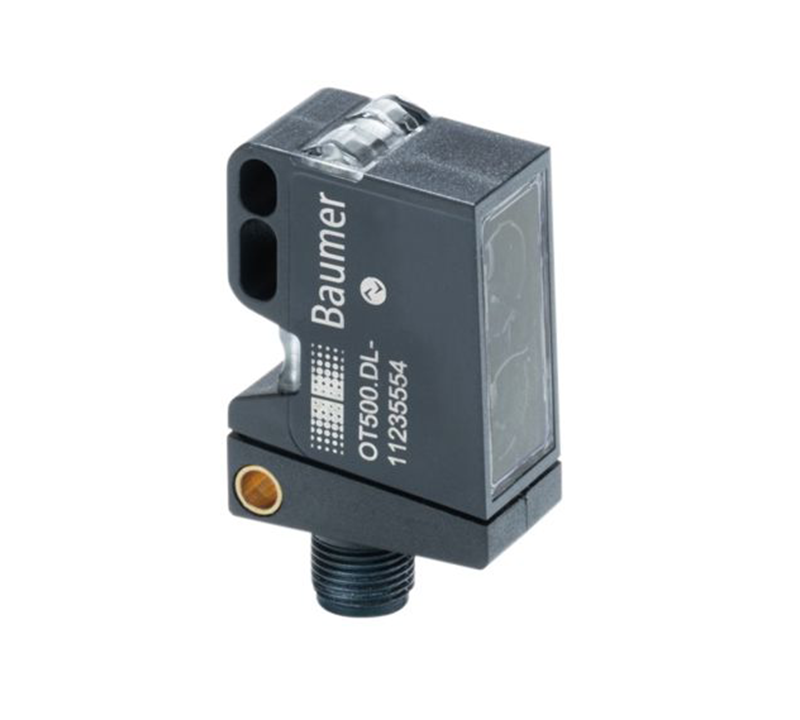

SmartReflect Light barriers Baumer OT500.SL-PDPVB.72F
- SmartReflect - Safe barrier principle without reflector
- Reliable also on very dark and shiny objects
- Manipulation-proof, simple teach-in via qTeach or line teach
- Longest distances thanks to time of flight principle
- Laser light source for an accurate switching behavior
| General Data |
| Type |
Light barrier |
| Version |
Time of Flight |
| Light Source |
Pulsed red laser diode |
| Background Position Sde |
500 ... 2500 mm |
| Scanning Range Sa |
85% ... 80% Sde |
| Power on Indication |
LED green |
| Output Indicator |
LED yellow / LED red |
| Sensing Distance Adjustment |
qTeach / external |
| Laser Class |
1 |
| Distance to Focus |
1500 mm |
| Wave Length |
680 nm |
| Suppression of Reciprocal Influence |
Yes |
| Beam Type |
Point |
| Alignment Optical Axis |
< 1° |
| Electrical Data |
| Response Time / Release Time |
< 8 ms |
| Voltage Supply Range +Vs |
12 ... 30 VDC |
| Current Consumption Max. (no load) |
60 mA |
| Voltage Drop Vd |
< 2 VDC |
| Output Function |
Dark operate, complementary |
| Output Circuit |
PNP |
| Output Current |
< 50 mA, sum of all outputs |
| Short Circuit Protection |
Yes |
| Reverse Polarity Protection |
Yes |
| Mechanical Data |
| Width / Diameter |
18 mm |
| Height / Length |
45 mm |
| Depth |
32 mm |
| Type |
Rectangular |
| Housing Material |
Plastic (ASA, PMMA) |
| Front (Optics) |
PMMA |
| Connection Types |
Connector M12 5 pin |
| Ambient Conditions |
| Protection Class |
IP 67 |
| Operating Temperature |
-20 ... +50 °C |
| Storage Temperature |
-40 ... +70 °C |
| Vibration (Sinusoidal) |
IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis |
| Shock (Semi-sinusoidal) |
IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction |
