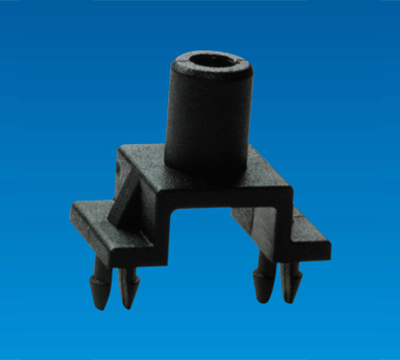

SMD HOUSING EDZ-01

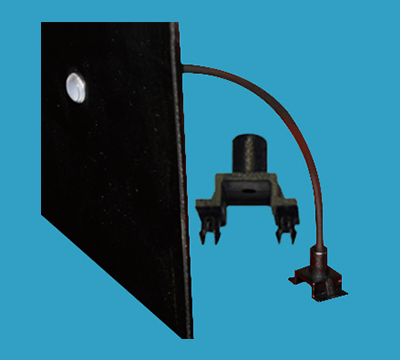

- Employ optical conductive fiber to lead SMD light from source to panel.
- Snap the unit into the hole on panel to assemble.
- Save extra cost to develop new tool for the rigid light pipe.
SMD HOUSING EDZ-01
FEATURES
SPECIFICATION
FEATURES
- Employ optical conductive fiber to lead SMD light from source to panel.
- Snap the unit into the hole on panel to assemble.
- Save extra cost to develop new tool for the rigid light pipe.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
| FOR SMT LAMP | ||||||
| PART NO | A | B | C | T CHASSIS THICKNESS |
FIBER DIAMETER |
PACKAGE |
| EDZ-01 | 3.9 | 2.1 | 8.0 | 1.6 | Ø2.0 | 1000 |
| EDZ-2F | 4.7 | 3.0 | 8.0 | 1.6 | Ø3.0 | |
