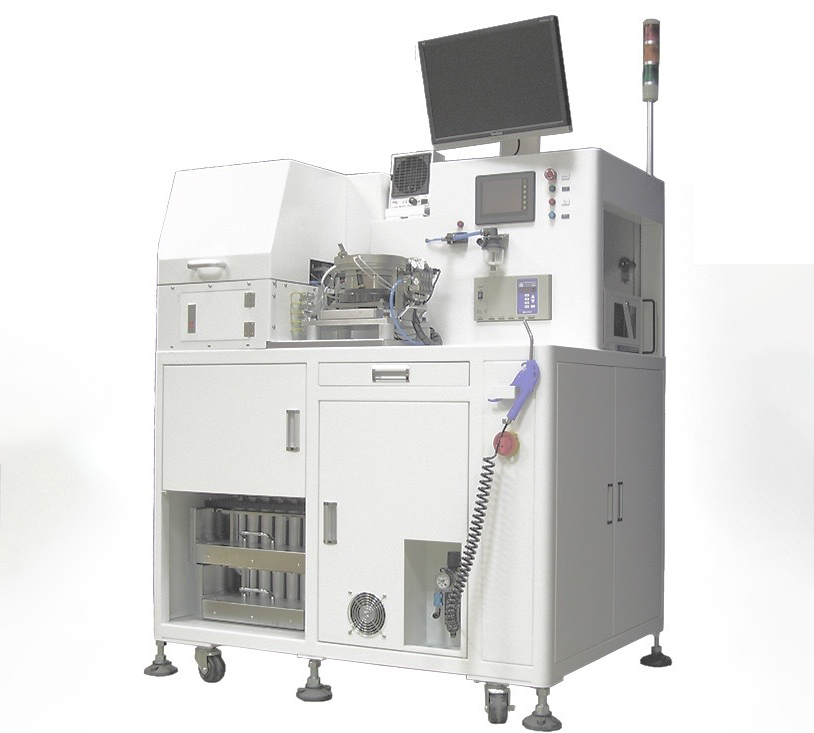

SMD LED Series High Speed Automatic Top View SMD LED Sorting Machine
LED Series High Speed Automatic Top View SMD LED Sorting Machine
Features:
- Dual test station design can effectively enhance the productivity.
- High speed and stable operation, and LED sorting was assured with Plastlist instrument.
- Applicable to various Top View SMD LED Sorting Machine.
| Specification | Model No.: S205 | Model No.: S206 | Model No.: S207 | Model No.: S208 |
|---|---|---|---|---|
| Applicable DUTs | Various Top View SMD LED | |||
| DUT Supply | Parts Feeder | |||
| DUT Direction | (Polarity test & rotation, to ensure the direction) for PLCC type | |||
| Test Station | 1 (option : 2) | |||
| Throughput | Type : 3014, 3020, 3528Max. 24K PPH(with measurement time < 80 msec) | Type : Type : 5050, 5050M, 5630 Max. 20K PPH with measurement time < 90 msec) | Type : 3014, 3020, 3528 24K PPH (with measurement time < 80 msec) | Type : 5050, 5050M, 5630 Max. 20K PPH (with measurement time < 90 msec) |
| Bin Number | 130 Bins | 260 Bins | ||
| Dimensions (mm) | 1,250(W) x 900(D) x 2,000(H) | 1,500(W) x 1,000(D) x 2,000(H) | ||
| Air Pressure (kg/cm²) |
5 | |||
| Power Supply (V/Hz) | AC 220 / 50 | |||
