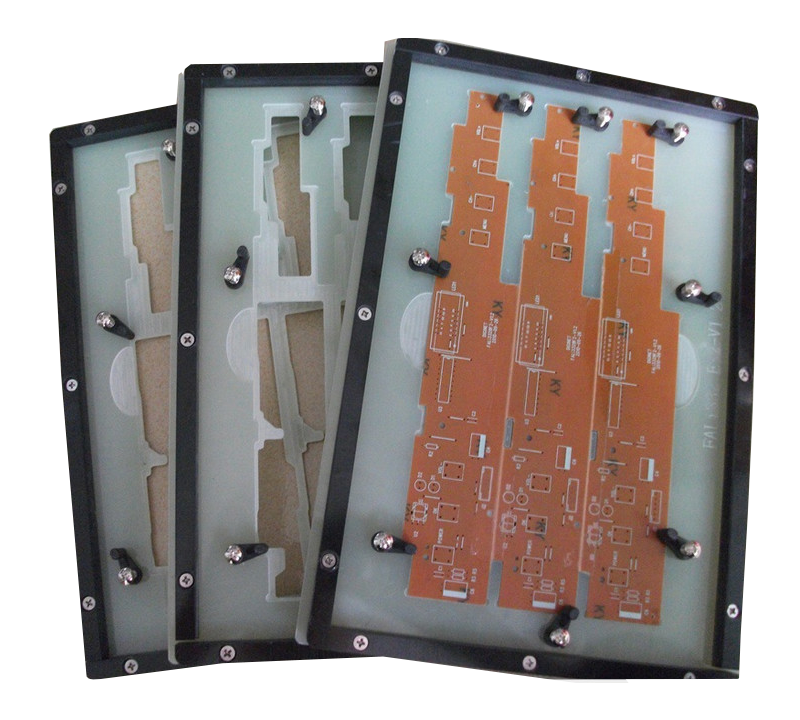

SMT Pallet PCB Punching Tool
- Life Cycle: 200000 Times
- Standard Operation Temperature: 260°C
- Maximum Operation Temperature (°C): 350
- Sheet Size (mm): Customizable:
- W1220mm PCB Punching Tool
- W1220mm SMT Pallet
Advantages
Specification
- Faster positioning on the production line
- Low costs without reinforced bars
- Use different board type on the production line can increase the production capacity
Specification
| Grade | Standard | Anti-Static | Anti-static(Optical) |
| Colour | Blue | Black | Grey |
| Density(g/mm3) | 1.85 | 1.85 | 1.85 |
| Standard OperationTemperature | 260 | 260 | 260 |
| Maximum Operation Temperature(C) | 350 | 350 | 350 |
| Sheet Size(mm) | 2440×1220 | 2440×1220 | 2440×1220 |
| Thickness/weight(mm/kg) | 3/17, 4/22 | 5/28, 6/33, 8/44 | 10/55, 12/66 |
