SMT Splice Tapes & Tools
Features
Application
For carrier tape cutting 8/12/16/24/32/44mm in SMT process
Specification
- Free jig combination for cutting carrier tape 8-44mm
- Cutting with positioning hole
- Anti-static handle
- Safety buckle design
- Magnetic jig boxs can be fixed on the machine
Application
For carrier tape cutting 8/12/16/24/32/44mm in SMT process
Specification

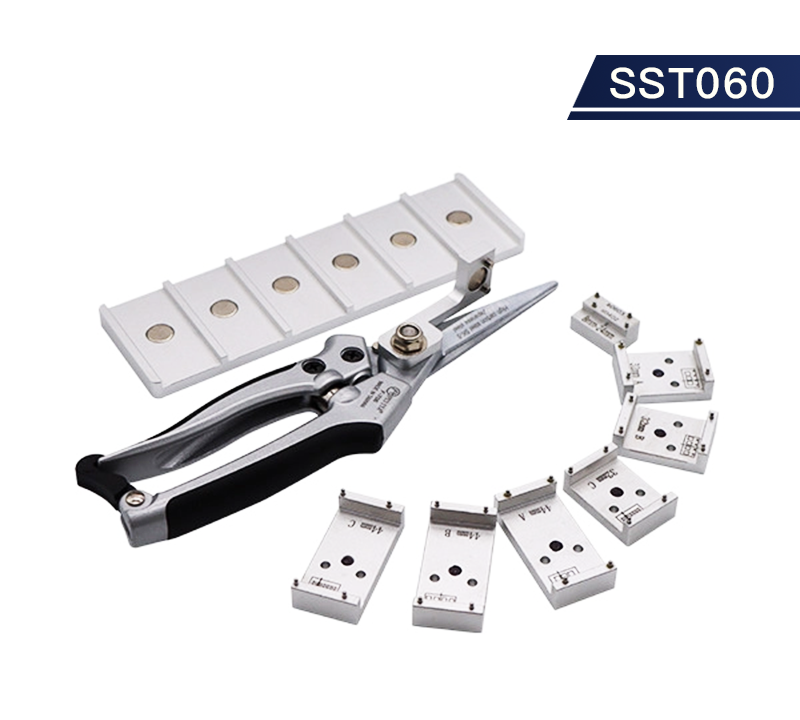

| Parts | Dimension/mm |

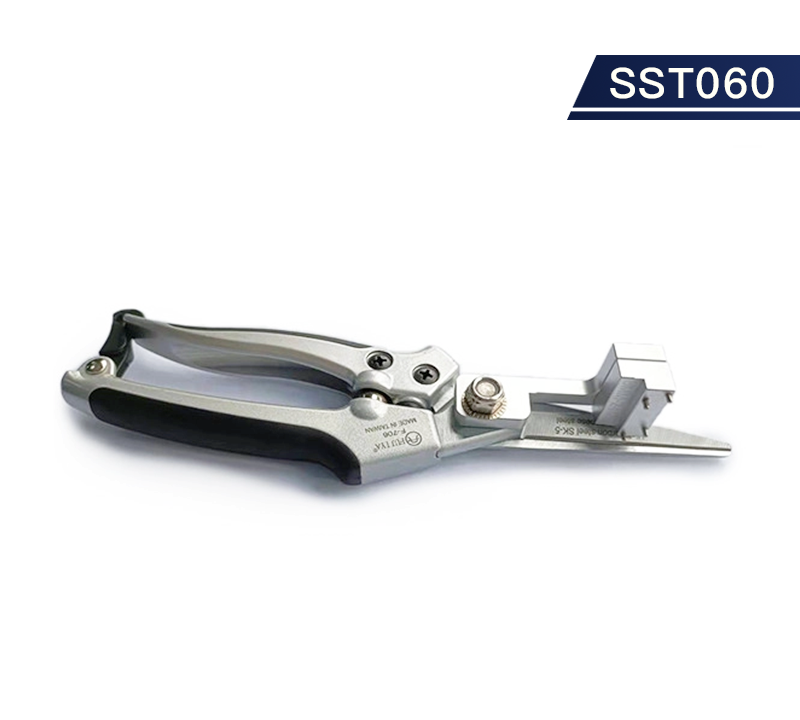

| Splicing Scissors | 200*50*35 |
| Cutting Jig 8mm | 22*14*12.5 |
| Cutting Jig 12mm | 22*14*12.5 |
| Cutting Jig 16mm | 22*14*12.5 |
| Cutting Jig 24mm | 22*14*12.5 |
| Cutting Jig 32mm | 22*33*12.5 |
| Cutting Jig 44mm | 22*45*12.5 |
| Magnetic Jig Box | 48*160*8 |
