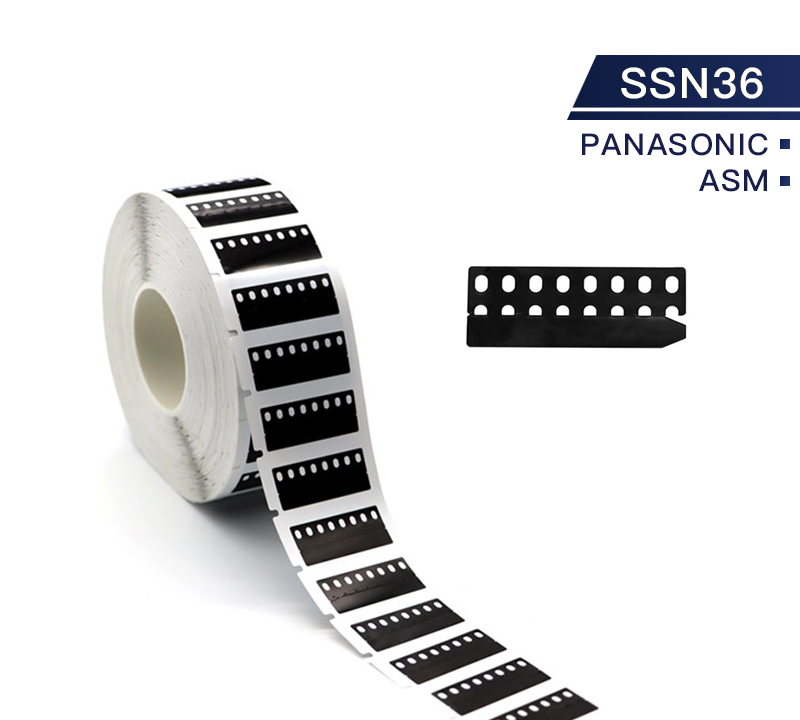

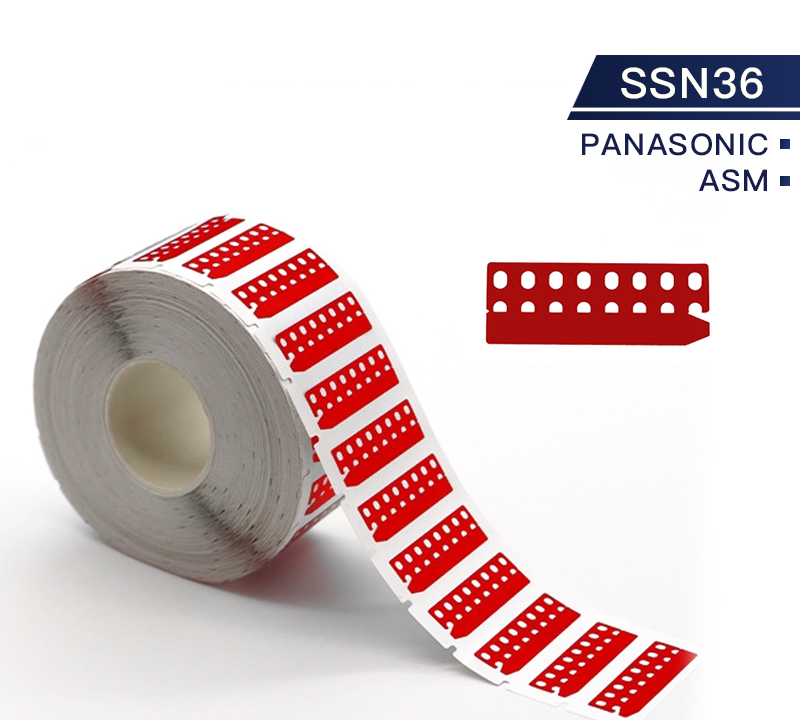

SMT Splice Tapes & Tools
Features
For jointing carrier tapes in the SMT process
Specification
- Ideal for automatic splicing machines for high jointing efficiency
- Metal sensing to avoid wrong components jointing
- Applicable for ASM and Panasonic Pick and Place machine
For jointing carrier tapes in the SMT process
Specification
| Material | PET |
| Adhesive | Acrylic |
| Peeling-off Force | (N/25mm) by angle 180°≥15 |
| Retaining Time | (H/25*25mm) ＞8 |
| Tensile Strength at Break | (N/25mm)＞2.5 |
| Certificate | RoHS |
| Part No | Description | Color | Width/mm |
| SSN3608 | For ASM and Panasonic Pick & Place Machine | Black/Red | 08 |
