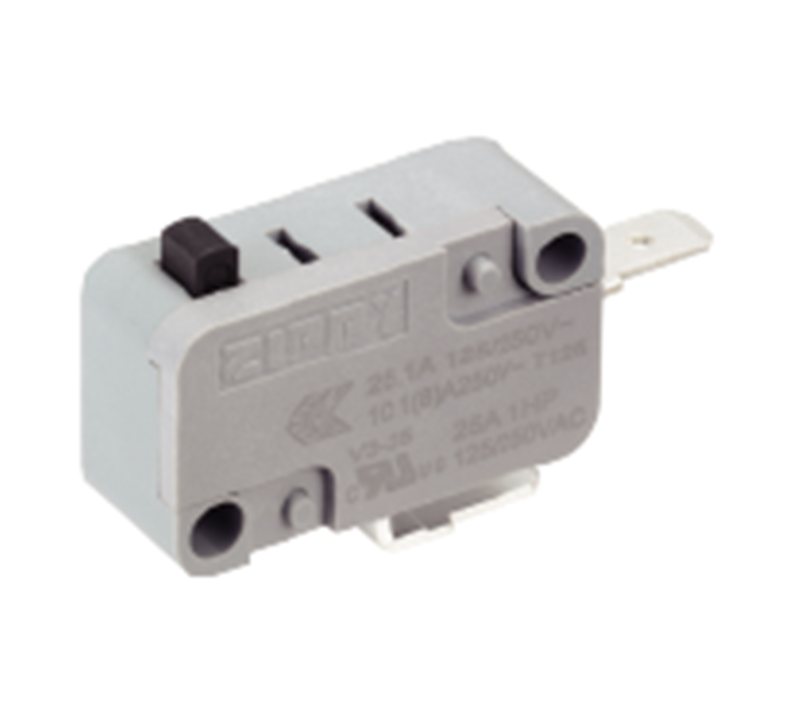

Snap Action Microswitches Micro Switches V3 Series Gap>3mm
V3 Series Gap 3mm
SPECIFICATIONS
Operating frequency(mechanical):120 Operation / mim
Operating frequency(electrical):
10~30 Operation / mim
Contact resistance:
30m Ω(max)
Insulation resistance(at 500 VDC)
100M Ω(Min)
Service life(mechanical)
Min. 500,000 Operations
Service life(electrical)
Min. 10,000 Operations
RATING
10.1A/16A/20.1A/25A 125/250VACAPPLICATION
Joystick,TV Game,Time Recorder,Air Conditioner,Food Processor,Juice Maker,Alarm,Mixer,Shredder MachineDIMENSIONS
CONTACT CONFIGURATION
.png "Snap-Action-Microswitches-Micro-Switches-V3-Series-Gap-3mm-2")
OPERATING FORCE
ORDER INFORMATION
TERMINAL TYPES
OPERATING CHARACTERISTICS
