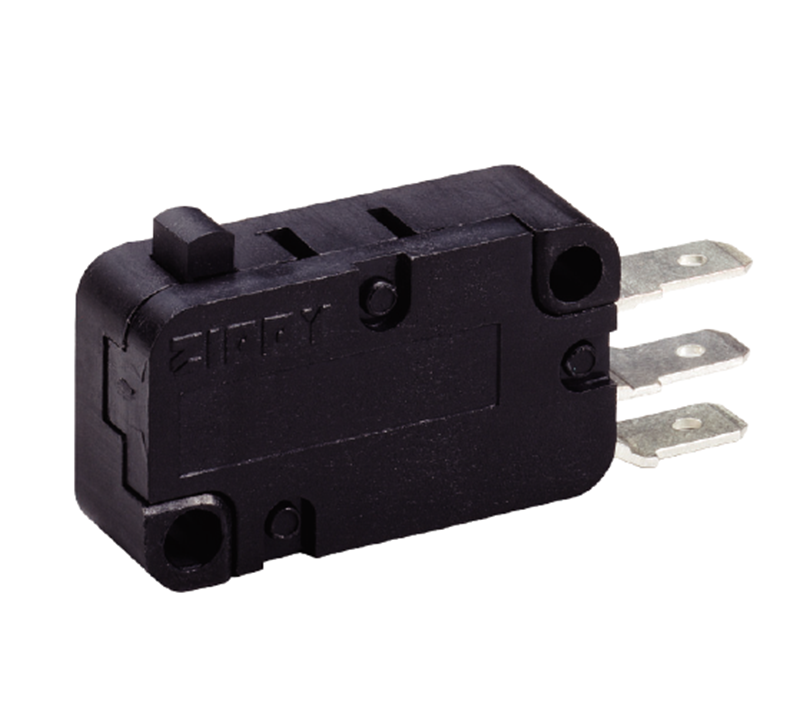

Components & Accessories
SPECIFICATIONS
Operating frequency(mechanical):120 Operation / mim
Operating frequency(electrical):
10~30 Operation / mim
Contact resistance:
100m Ω(max)
Insulation resistance(at 500 VDC)
100M Ω(Min)
Service life(mechanical)
Min. 10,000,000 Operations
Service life(electrical)
3A~15A- Min. 6,000 Operations
RATING
0.1A/3A/6A/10A/15A 125/250VAC ; 0.1A 30VDCAPPLICATION
JoystickTV Game
Time Recorder
Air Conditioner
Food Processor
Juice Maker
Alarm
Mixer
Shredder Machine
DIMENSIONS
CONTACT CONFIGURATION
.png "DW-contact (4)")
OPERATING FORCE
ORDER INFORMATION
TERMINAL TYPES
OPERATING CHARACTERISTICS
