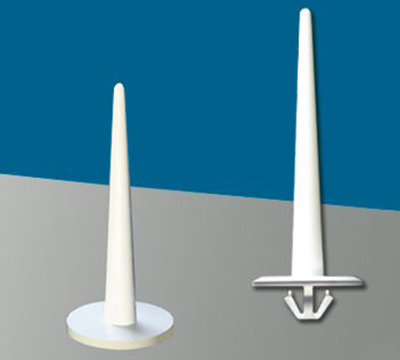

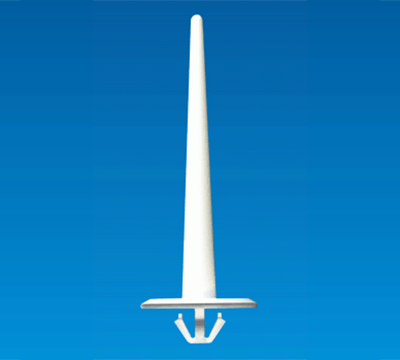

SNAP IN SPACER FOR BACKLIGHT MODULE CBD-25A
- Joint PCB with Chassis and other board.
- Provides distance, space and support between Circuit boards.
- Screw design, associate with nut to fasten the joint board.
SNAP IN SPACER FOR BACKLIGHT MODULE CBD-25A
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis and other board.
- Provides distance, space and support between Circuit boards.
- Screw design, associate with nut to fasten the joint board.
SPECIFICATION
- MATERIAL: PC
- FLAME CLASS: 94V-0
- COLOR: WHITE

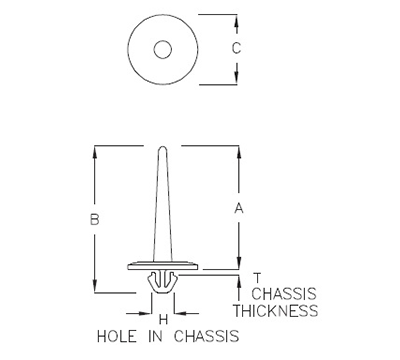

| PART NO | A | B | C | H HOLE IN CHASSIS |
T CHASSIS THUCKNESS |
PACKAGE |
|---|---|---|---|---|---|---|
| CBD-25A | 25.4 | 29.8 | Ø13.3 | Ø4.5 | 0.6~0.8 | 500 |
| CBD-27F | 27.2 | 31.15 | Ø15.0 | Ø4.8 | 0.8~1.0 | |
| CBD-33AC | 33.0 | 36.6 | Ø13.4 | Ø4.6 | 0.5~0.6 | |
| CBD-33P | 33.0 | 36.9 | Ø13.3 | Ø4.6 | 0.5~0.8 |
