Soldering
Solder Tip P/V
Customization is available
Model No.:
P6V08-18
P1V08-18
P1V10-20
P1V10-23
P1V12-23
P1V12-28
Model No.:
P6V08-18
P1V08-18
P1V10-20
P1V10-23
P1V12-23
P1V12-28

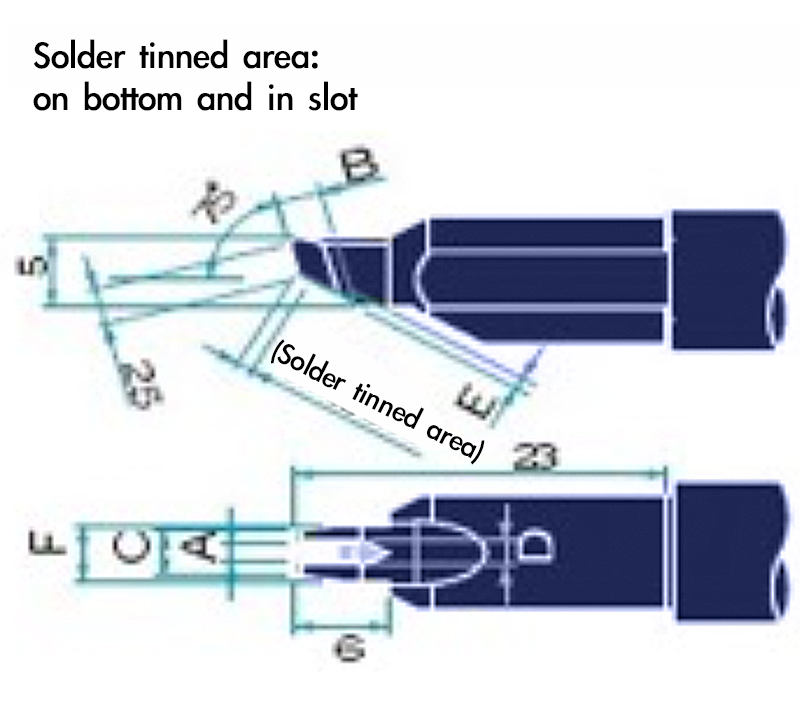

| Model | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) |
| P6V08-18 | 0.8 | 1.8 | 2 | 1.4 | 0.8 | 3.2 |
| P1V08-18 | 0.8 | 1.8 | 2.8 | 1.4 | 0.7 | 4 |
| P1V10-20 | 1 | 2 | 3 | 1.4 | 0.8 | 4 |
| P1V10-23 | 1 | 2.3 | 3 | 1.6 | 0.8 | 4 |
| P1V12-23 | 1.2 | 2.3 | 3.2 | 1.8 | 0.9 | 4 |
| P1V12-28 | 1.2 | 2.8 | 3.2 | 1.8 | 0.9 | 4 |
