Components & Accessories

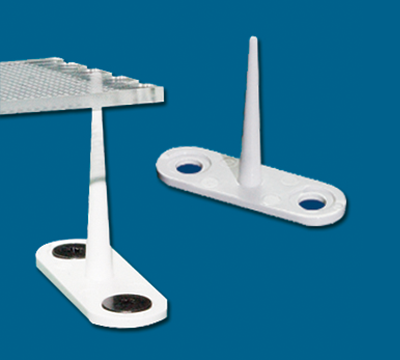

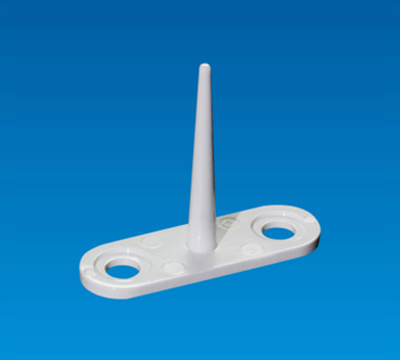

SPACER FOR BACKLIGHT MODULE- SCREW FJW-25T
- Joint PCB with Chassis and other board.
- Provides distance, space and support between Circuit boards.
- Screw design, associate with nut to fasten the joint board.
SPACER FOR BACKLIGHT MODULE- SCREW FJW-25T
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis and other board.
- Provides distance, space and support between Circuit boards.
- Screw design, associate with nut to fasten the joint board.
SPECIFICATION
- MATERIAL: PC
- FLAME CLASS: 94V-0
- COLOR: WHITE
| PART NO | A | C | D | E | PACKAGE |
|---|---|---|---|---|---|
| FJW-18PQ | 18.8 | 10.0 | Ø4.0 | Ø6.5 | 500 |
| FJW-25T | 25.2 | 10.0 | Ø4.0 | Ø6.5 | |
| FJW-27AK | 27.2 | 10.0 | Ø4.0 | Ø6.5 | |
| FJW-27HM | 27.2 | 10.0 | Ø4.3 | Ø6.5 |
