Components & Accessories

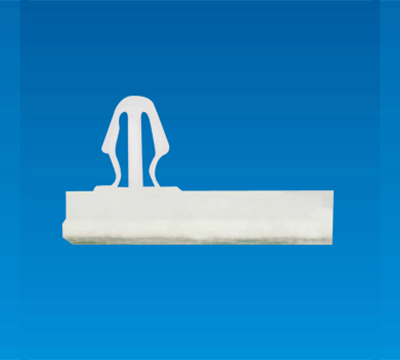

SPACER SUPPORT AAA-01

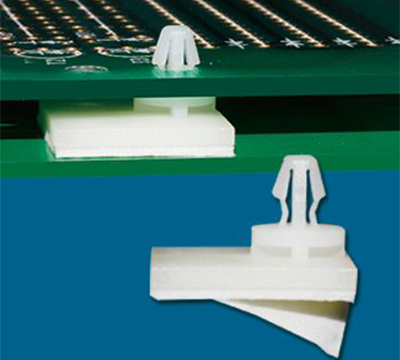

- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Adhesive back design, no need for a mounting hole on the chassis.
- Adhesive tape can be changed upon request.
SPACER SUPPORT AAA-01
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Adhesive back design, no need for a mounting hole on the chassis.
- Adhesive tape can be changed upon request.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- ADHESIVE TAPE: 3M

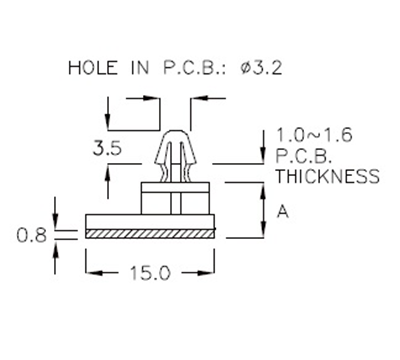

| PART NO | A | ADHESIVE AREA | PACKAGE |
|---|---|---|---|
| AAA-01 | 3.0 | 15.0x15.0 | 500 |
| AAA-3A | 4.5 | 15.0x15.0 | 500 |
