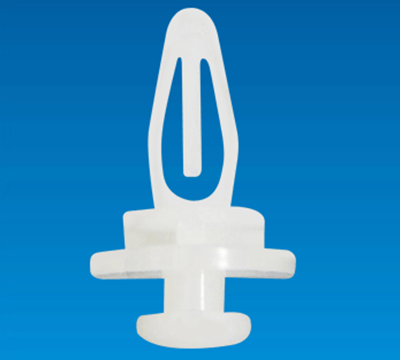

SPACER SUPPORT AC-003

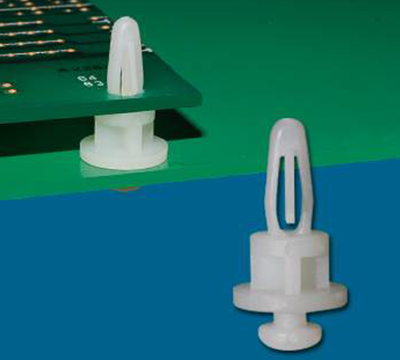

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPACER SUPPORT AC-003
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

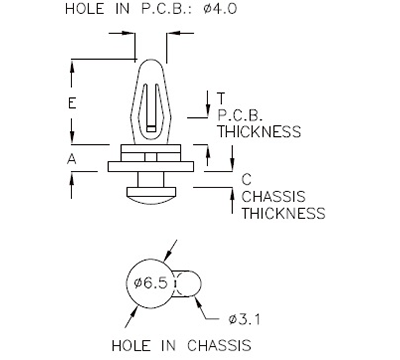

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
E | PACKAGE |
|---|---|---|---|---|---|
| AC-003 | 3.2 | 1.6 | 1.0~1.7 | 10.2 | 1000 |
| AC-006 | 6.4 | 1.6 | 1.0~1.7 | 10.2 | 1000 |
