Components & Accessories

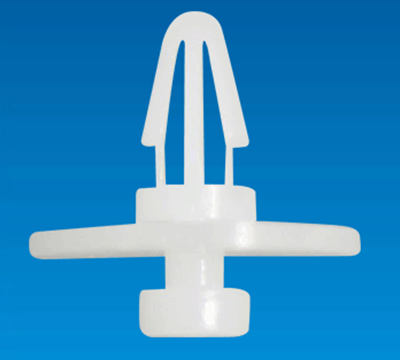

SPACER SUPPORT ACBS-3C

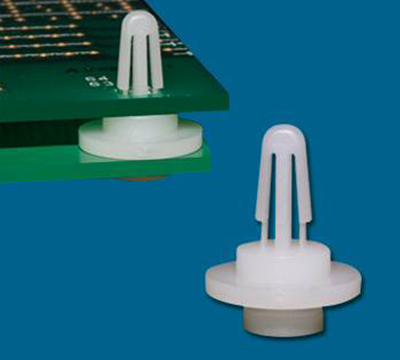

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPACER SUPPORT ACBS-3C
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

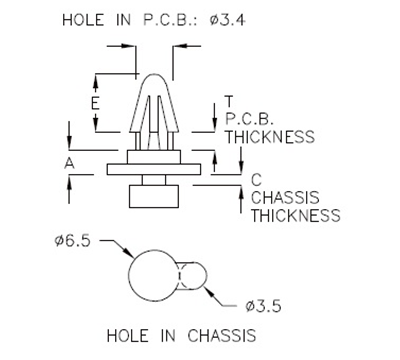

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
E | PACKAGE |
|---|---|---|---|---|---|
| ACBS-3C | 3.5 | 1.4~1.8 | 0.8~1.0 | 7.1 | 1000 |
