Components & Accessories

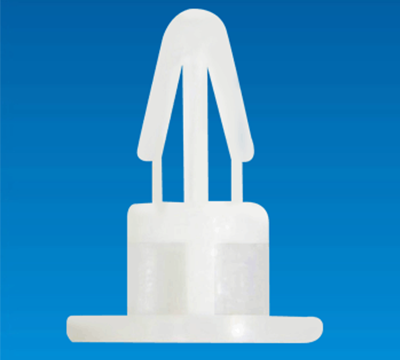

SPACER SUPPORT ACBS-6Y

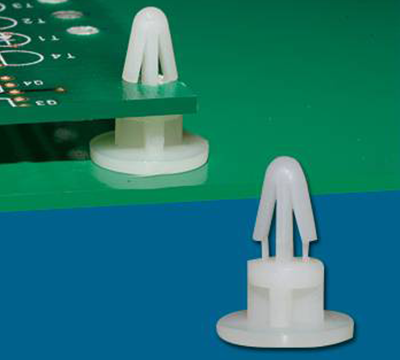

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPACER SUPPORT ACBS-6Y
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

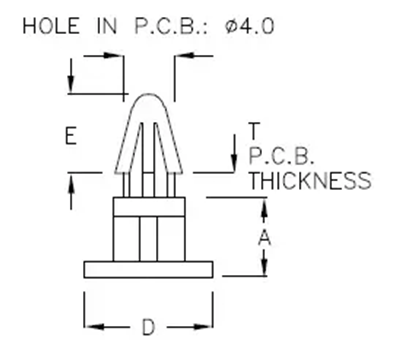

| PART NO | A | T P.C.B THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|
| ACBS-6Y | 6.4 | 1.2~1.6 | Ø11.8 | 7.2 | 1000 |
| ACBS-8X | 8.0 | 1.2~1.7 | Ø15.0 | 7.2 | 1000 |
| ACBS-8Y | 8.0 | 1.2~1.7 | Ø11.6 | 7.2 | 1000 |
| ACBS-8K | 8.0 | 1.2~1.7 | Ø18.0 | 7.1 | 500 |
| ACT-17 | 17.0 | 1.4~1.8 | Ø11.3 | 7.0 | 500 |
