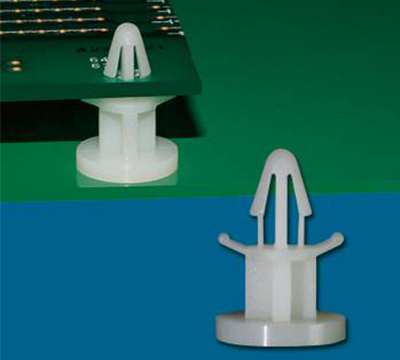

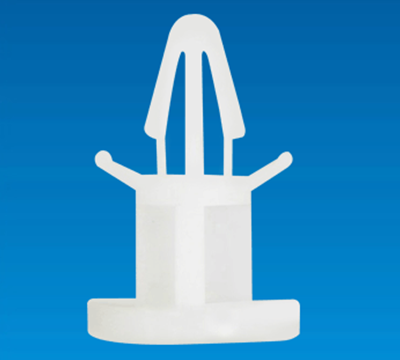

SPACER SUPPORT ACBS-8D
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Easily removed for repairing or changing.
SPACER SUPPORT ACBS-8D
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
-
COLOR: NATURAL

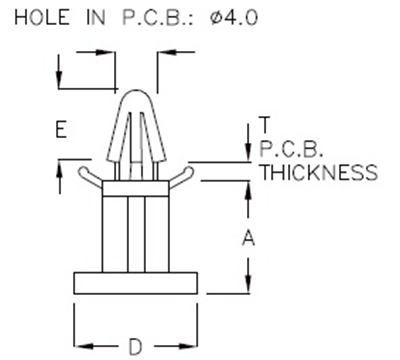

| PART NO | A | T P.C.B THICKNESS |
D | E | PACKAGE |
|---|---|---|---|---|---|
| ACBS-8D | 8.0 | 1.2~1.6 | Ø12.0 | 7.5 | 1000 |
| ACBS-9K | 8.5 | 1.6~2.2 | Ø12.0 | 6.0 | 1000 |
| ACBS-9Y | 9.0 | 1.2~1.6 | Ø12.0 | 7.1 | 1000 |
| ACBS-10Y | 10.0 | 1.2~1.6 | Ø12.0 | 7.1 | 1000 |
| ACBS-11Y | 11.0 | 1.2~1.6 | Ø12.0 | 7.1 | 1000 |
