Components & Accessories

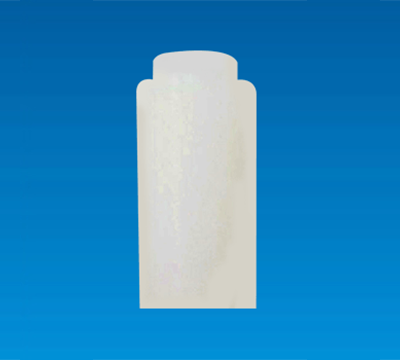

SPACER SUPPORT AD-012

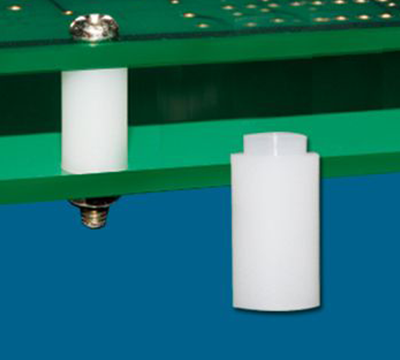

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPACER SUPPORT AD-012
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

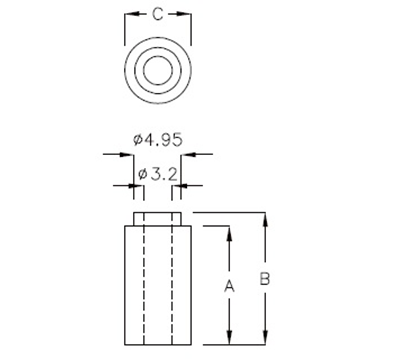

| PART NO | A | B | C | PACKAGE |
|---|---|---|---|---|
| AD-012 | 12.0 | 13.5 | Ø7.0 | 500 |
| AD-12A | 12.5 | 14.0 | Ø7.0 | 500 |
