Components & Accessories

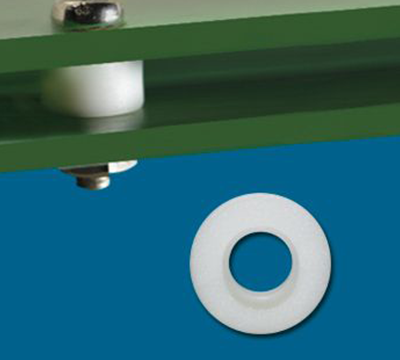

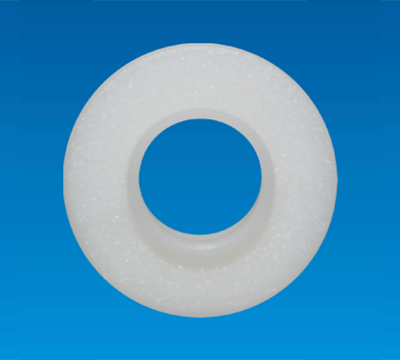

SPACER SUPPORT ADJ-2CH
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPACER SUPPORT ADJ-2CH
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

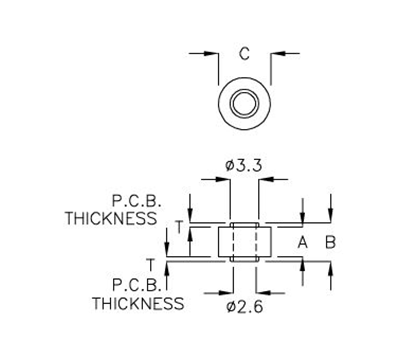

| PART NO | A | B | C | T P.C.B THICKNESS |
PACKAGE |
|---|---|---|---|---|---|
| ADJ-2CH | 2.9 | 3.9 | Ø6.0 | 0.8~1.6 | 2000 |
| ADJ-3FQ | 3.4 | 4.4 | Ø6.0 | 0.8~1.6 | 2000 |
