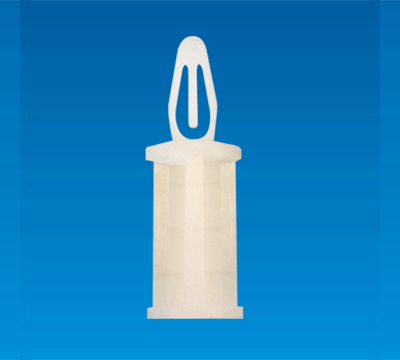

SPACER SUPPORT BCMS-6

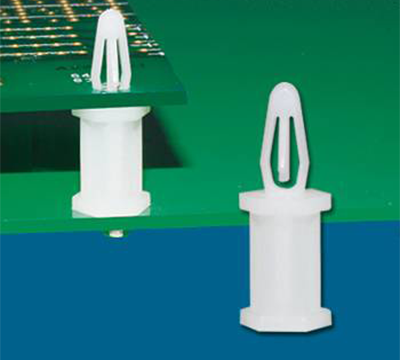

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Tapping Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPACER SUPPORT BCMS-6
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Tapping Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

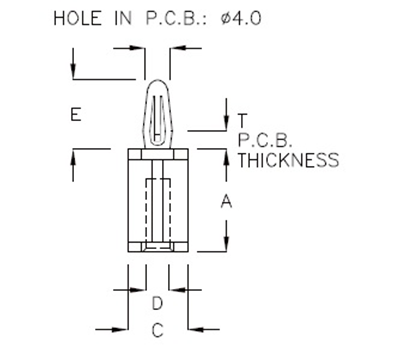

| PART NO | A | T P.C.B THICKNESS |
C | SCREW & THICKNESS | E | PACKAGE | |
| D TAPPING SCREW |
SUITABLE THICKNESS |
||||||
| BCMS-6 | 6.35 | 1.2~1.7 | 9.0 | M3x6 | 1.0 | 10.7 | 500 |
| BCMS-6AD | 6.0 | 1.2~1.7 | 8.6 | M3x5 | 1.0 | 10.2 | |
| BCMS-8 | 8.0 | 1.2~1.7 | 8.9 | M3x6 | 1.0 | 10.6 | |
| BCMS-10 | 10.0 | 1.2~1.7 | 9.0 | M3x6 | 1.0 | 10.1 | |
| BCMS-12 | 12.7 | 1.2~1.7 | 8.9 | M3x6 | 1.0 | 10.6 | |
| BCMS-14 | 14.0 | 1.2~1.7 | 9.2 | M3x6 | 1.0 | 10.3 | |
