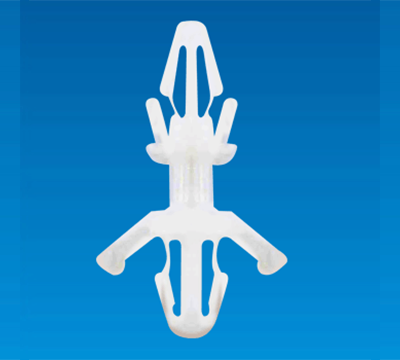

SPACER SUPPORT CBS-5

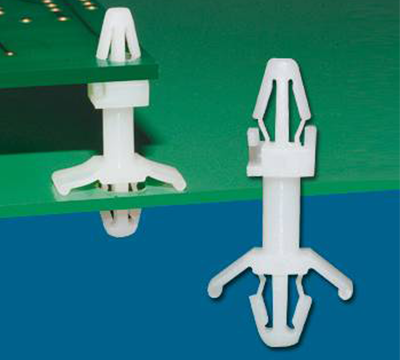

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- One piece design, no screws, nuts and washers needed.
- One end tension wings design, provide a tight fit.
SPACER SUPPORT CBS-5
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- One piece design, no screws, nuts and washers needed.
- One end tension wings design, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
|

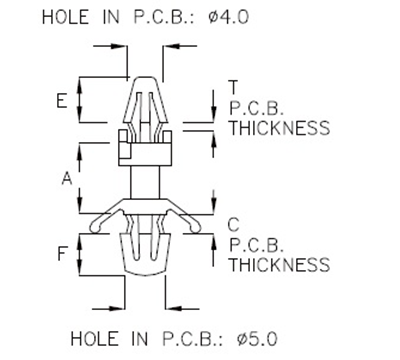

PART NO
|
A
|
T
P.C.B THICKNESS |
C
P.C.B THICKNESS |
E
|
F
|
PACKAGE
|
|---|---|---|---|---|---|---|
|
CBS-5
|
4.8
|
0.8~1.9
|
0.5~2.2
|
6.0
|
5.5
|
1000
|
|
CBS-6
|
6.35
|
0.8~1.9
|
0.5~2.2
|
6.0
|
5.5
|
|
|
CBS-10
|
9.2
|
0.8~1.9
|
0.5~2.2
|
6.0
|
5.5
|
|
|
CBS-12
|
12.7
|
0.8~1.9
|
0.5~2.2
|
6.0
|
5.5
|
|
|
CBS-15
|
15.9
|
0.8~1.9
|
0.5~2.2
|
6.0
|
5.5
|
500
|
|
CBS-19
|
19.0
|
0.8~1.9
|
0.5~2.2
|
6.0
|
5.5
|
|
|
CBS-25
|
25.4
|
0.8~1.9
|
0.5~2.2
|
6.0
|
5.5
|
|
|
CBS-28
|
28.5
|
0.8~1.9
|
0.5~2.2
|
6.0
|
5.5
|
|
|
CBS-35
|
35.0
|
0.8~1.9
|
0.5~2.2
|
6.0
|
5.5
|
