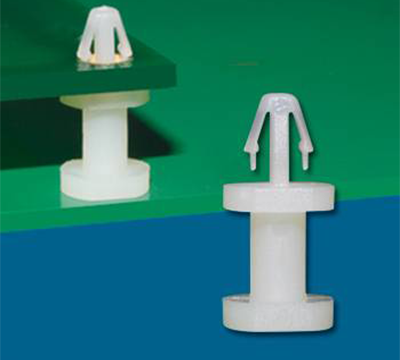

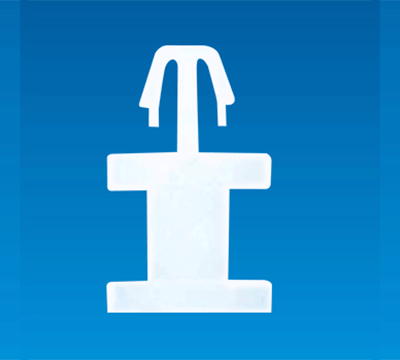

SPACER SUPPORT DCBS-4
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
SPACER SUPPORT DCBS-4
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

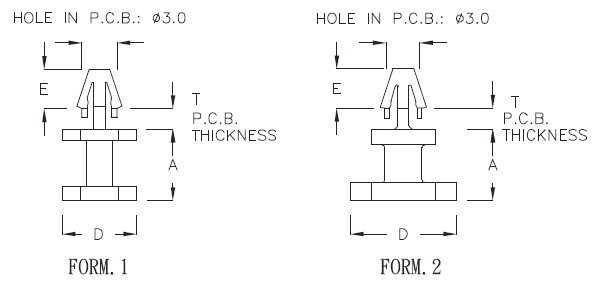

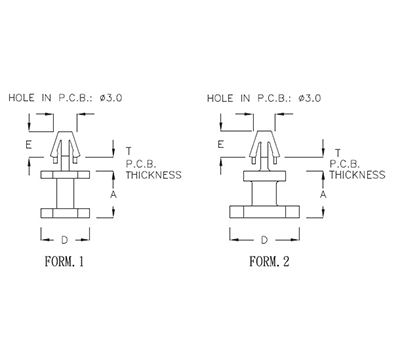

| PART NO | A | D | T P.C.B THICKNESS |
E | FORM | PACKAGE |
|---|---|---|---|---|---|---|
| DCBS-4 | 4.0 | Ø7.0 | 1.2~1.6 | 3.8 | 1 | 2000 |
| DCBS-4C | 4.0 | Ø6.0 | 1.2~1.6 | 3.7 | 1 | |
| DCBS-4M | 4.5 | Ø7.0 | 1.2~1.6 | 3.7 | 1 | |
| DCBS-5 | 5.0 | Ø6.9 | 1.2~1.6 | 3.8 | 1 | |
| DCBS-5M | 5.5 | Ø7.0 | 1.2~1.6 | 3.8 | 1 | |
| DCBS-6 | 6.0 | Ø7.0 | 1.2~1.6 | 3.8 | 1 | |
| DCBS-7 | 7.0 | Ø7.0 | 1.2~1.6 | 3.7 | 1 | |
| DCBS-8 | 8.0 | Ø7.0 | 1.2~1.6 | 3.8 | 1 | |
| DCBS-8A | 8.0 | Ø6.8 | 1.2~1.6 | 4.3 | 1 | |
| DCBS-8C | 8.0 | Ø7.0 | 2.0~2.2 | 3.3 | 1 | |
| DCBS-8M | 8.5 | Ø7.0 | 1.2~1.6 | 3.7 | 1 | |
| DCBS-9 | 9.0 | Ø7.0 | 1.2~1.6 | 3.8 | 1 | |
| DCBS-10 | 10.0 | Ø7.0 | 1.2~1.6 | 3.8 | 1 | |
| DCBS-10A | 10.5 | Ø7.0 | 1.2~1.6 | 3.9 | 1 | |
| DCBS-11 | 11.0 | Ø7.0 | 1.2~1.6 | 3.8 | 1 | |
| DCBS-12 | 12.0 | Ø7.0 | 1.2~1.6 | 3.8 | 1 | 1000 |
| DCBS-13 | 13.0 | Ø7.0 | 1.2~1.6 | 3.8 | 1 | |
| DCBS-14 | 14.0 | Ø4.8 | 1.2~1.6 | 3.8 | 1 | |
| DCBS-15 | 15.0 | Ø7.0 | 1.2~1.6 | 3.8 | 1 | |
| DCBS-16KH | 16.0 | Ø10.0 | 1.2~1.6 | 3.7 | 2 |
